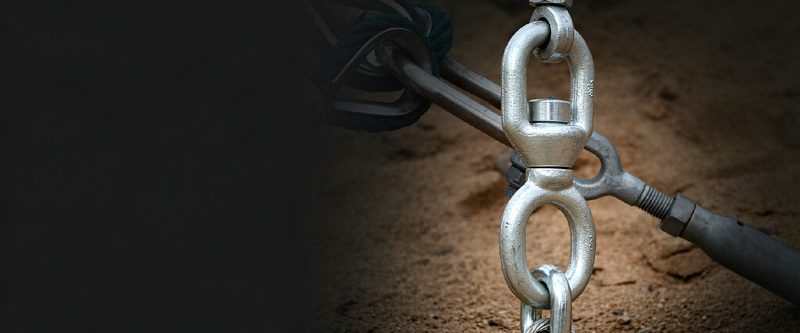

Galvanized swivel connected to turnbuckle and chain on sand

Swivels

Name: Swivels
Brand: Newbas

A swivel is a rotating link that keeps the chain or rope from twisting under load during lifting, towing and mooring.

Product line

Models in this line

Every model in this line has its own catalogue photo, dimension table and drawing. Select a model to see its full detail below.

01G401Chain Swivel5 sizes · M6 – M16
02G402Chain Swivel6 sizes · M6 – M20
03G403Clevis Swivel6 sizes · M6 – M20
04Round Swivel With Ring5 sizes · 4mm – 10mm

Model 01 / 04

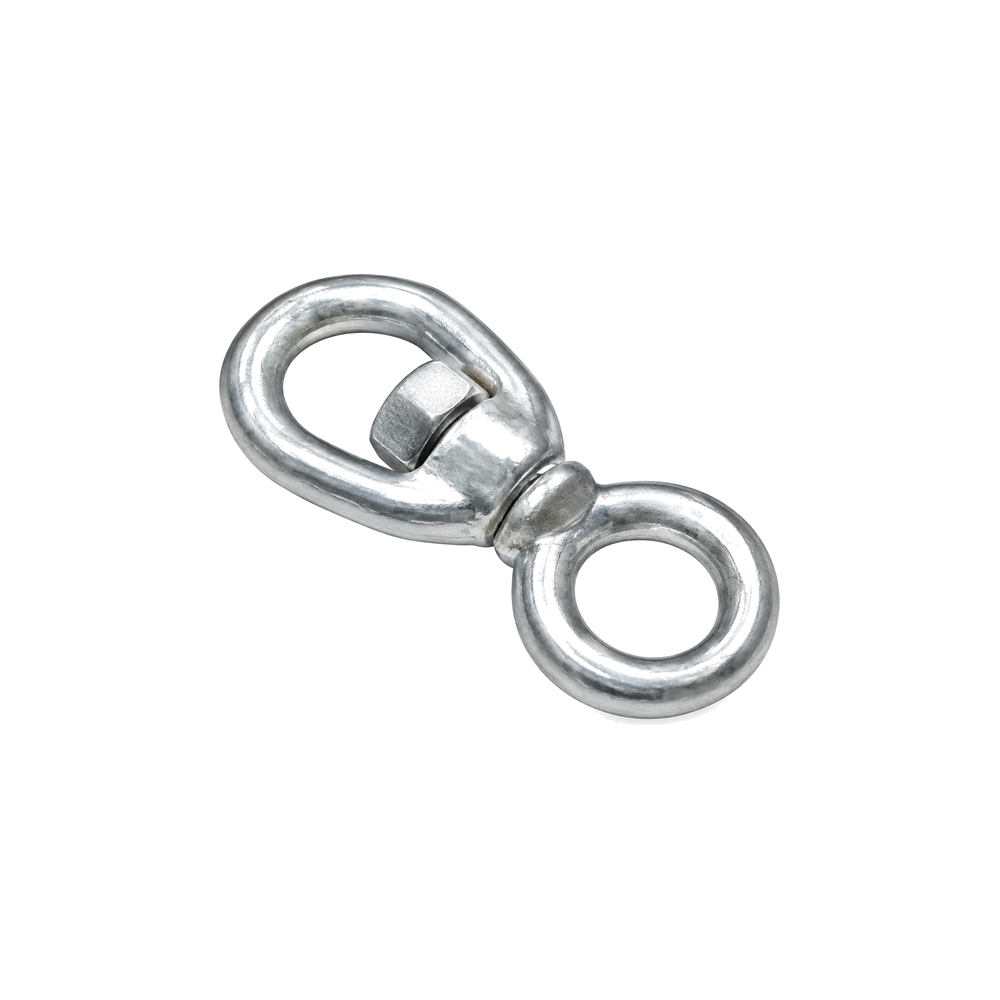

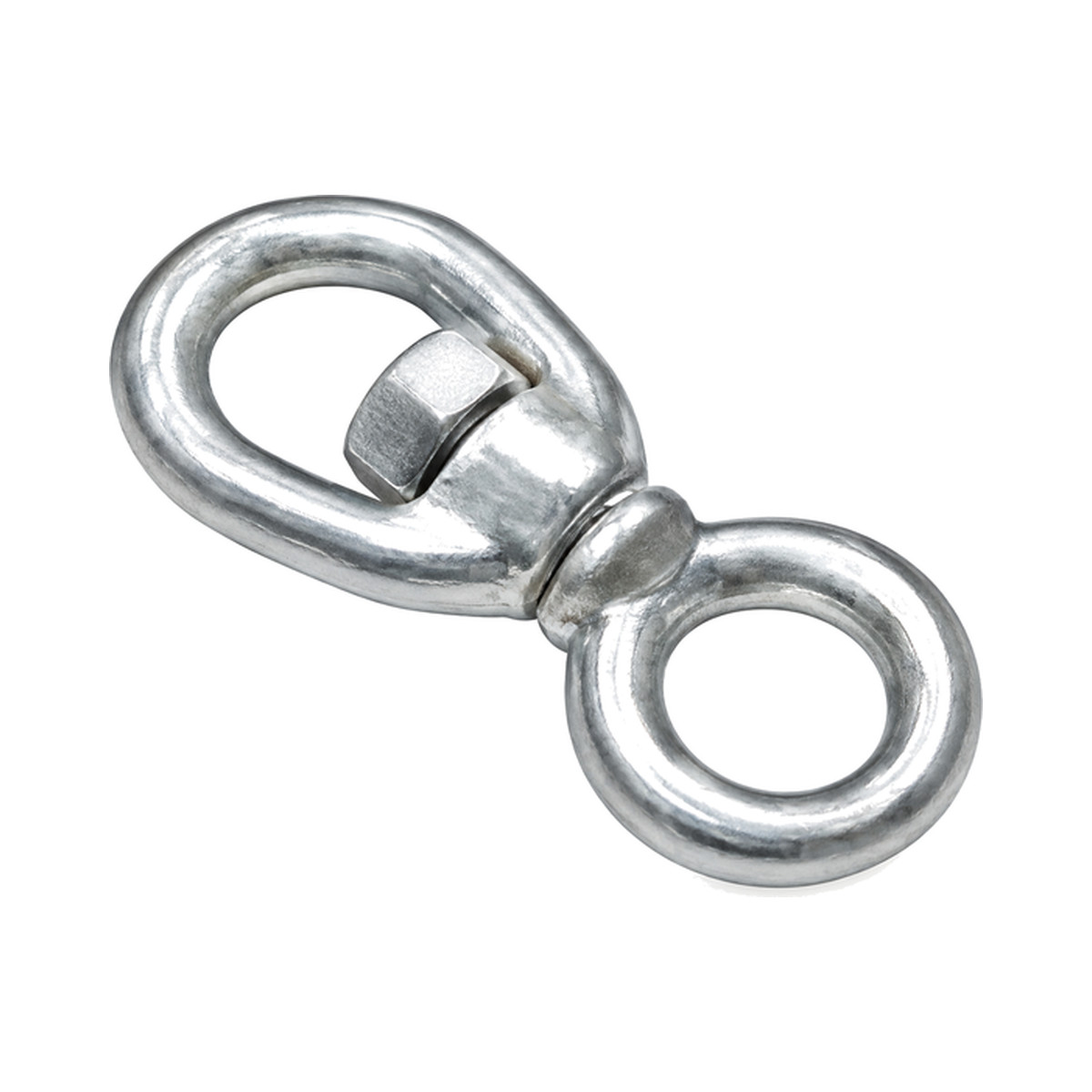

Chain Swivel G-401

MaterialSteel C45E
SurfaceHot-dip galvanized
Size rangeM6 – M16

Specification table

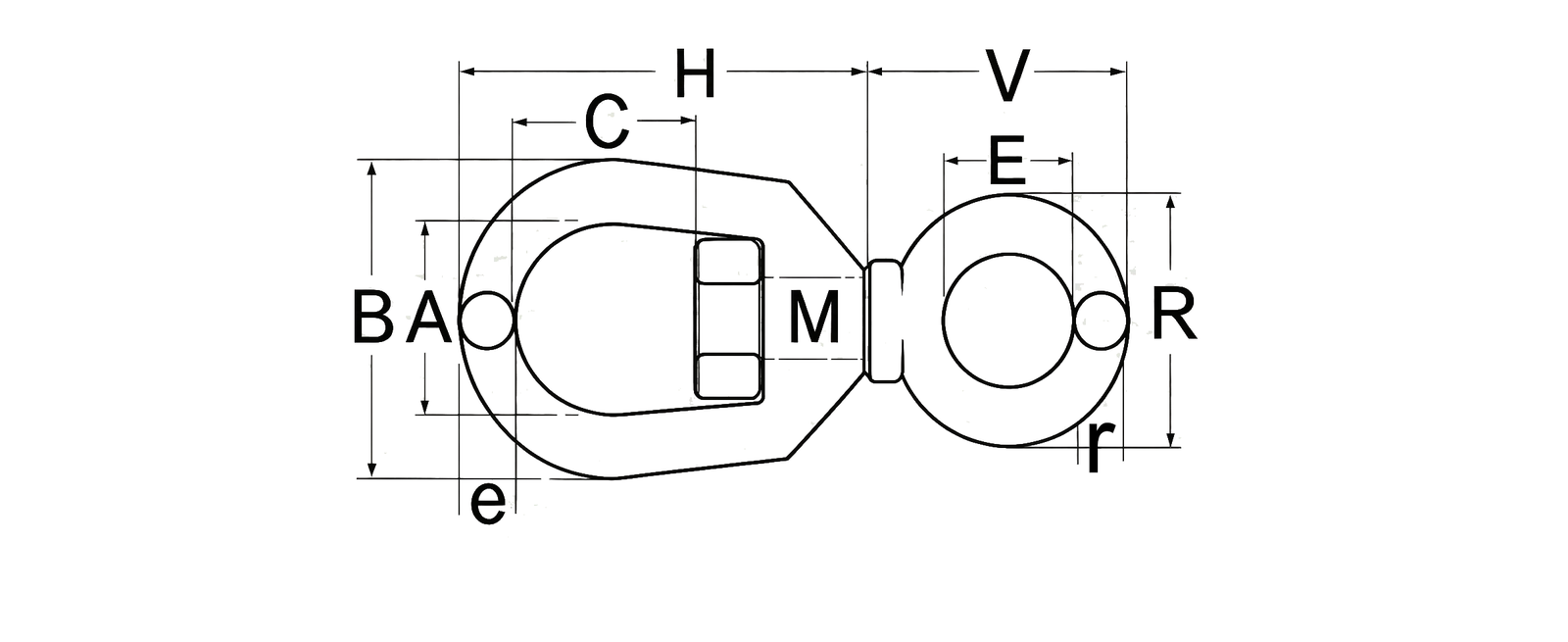

Chain Swivel G-401 — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	A	B	C	E	e	H	R	r	V	Weight	WLL
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/pc	t
M6	18	33	17	16	7	44	29	6	30	0.07	0.2
M8	24	41	21	19	8	53	35	8	36	0.12	0.4
M10	31	52	24	25	10	63	44	10	48	0.23	0.64
M12	37	64	32	32	13	82	58	13	62	0.54	0.9
M16	41	75	41	37	17	100	69	17	73	0.94	1.6

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 02 / 04

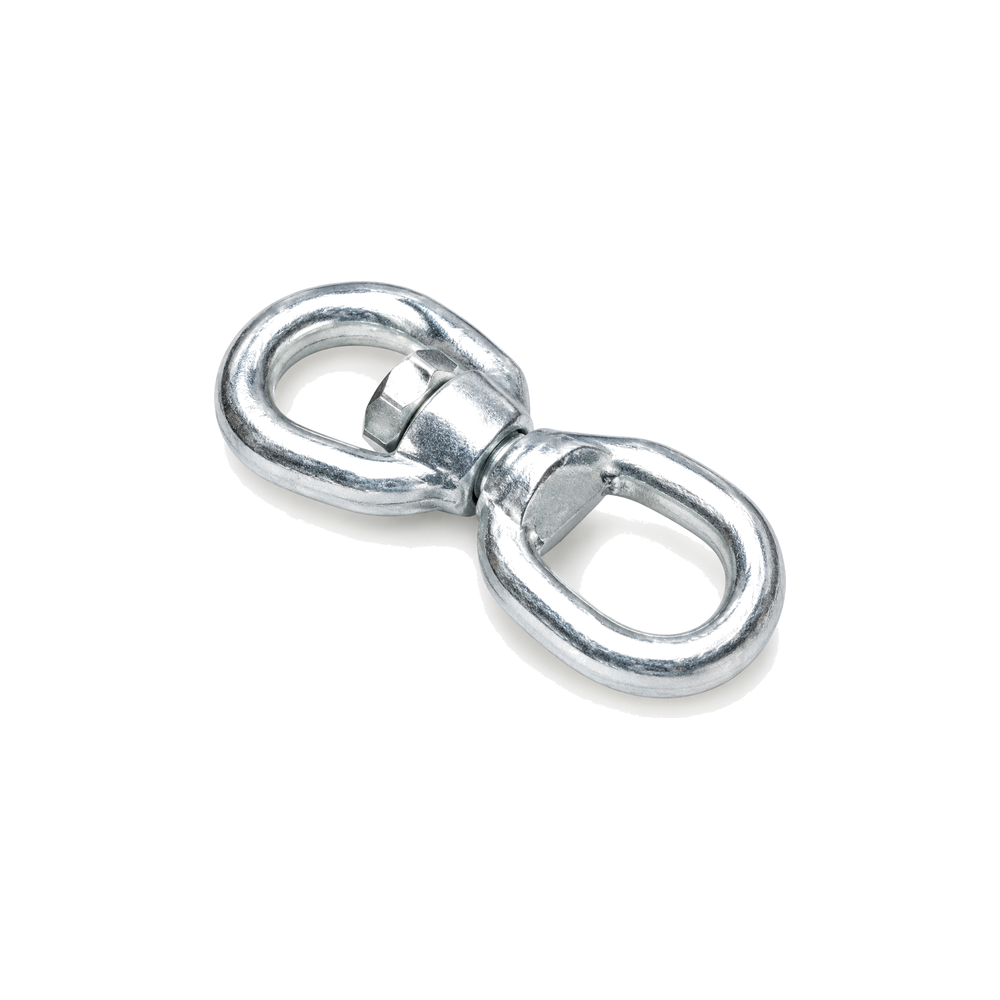

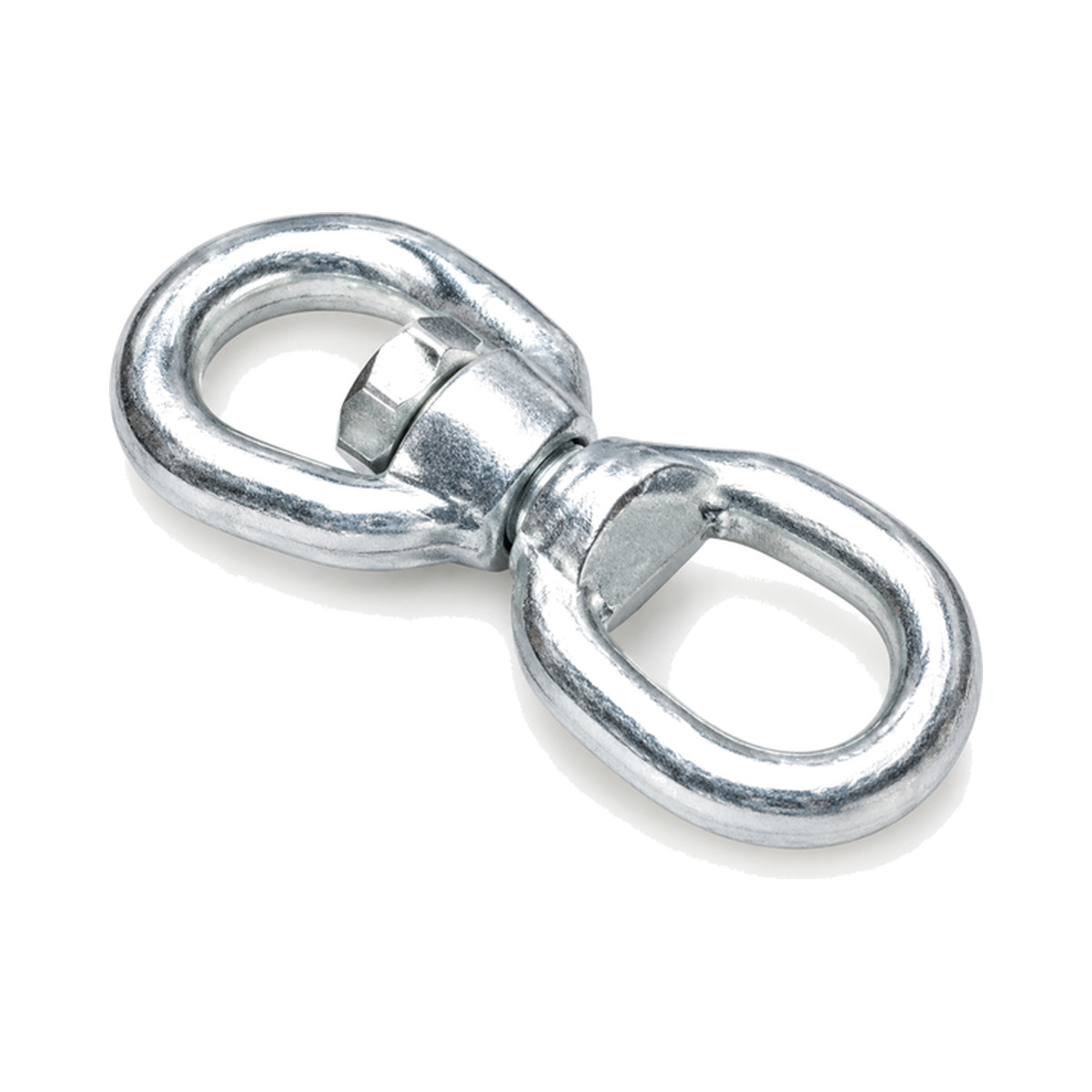

Chain Swivel G-402

MaterialSteel C45E
SurfaceHot-dip galvanized
Size rangeM6 – M20

Specification table

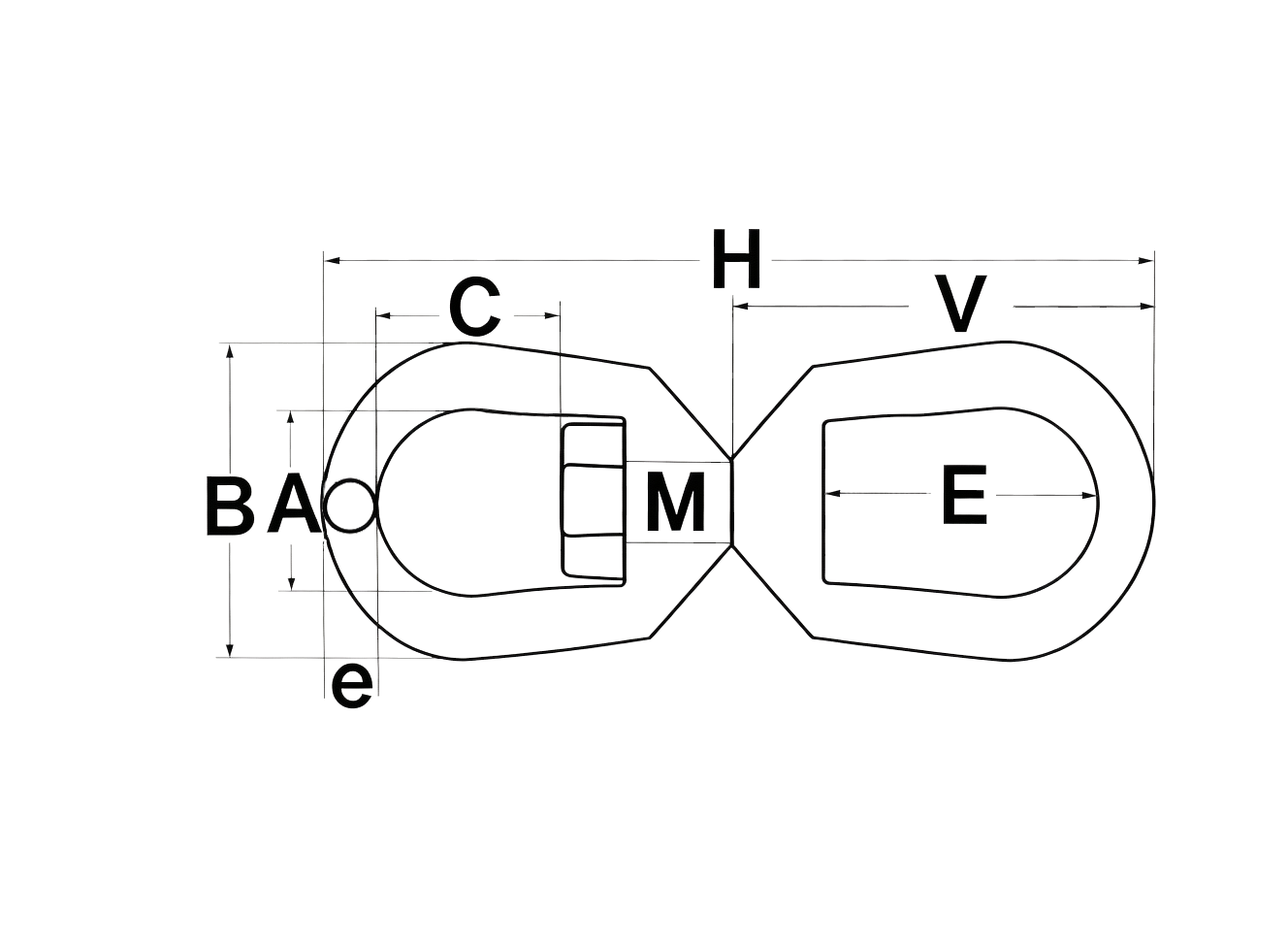

Chain Swivel G-402 — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	A	B	C	E	e	H	V	Weight	WLL
mm	mm	mm	mm	mm	mm	mm	mm	kg/pc	t
M6	18	32	16	24	7	85	42.5	0.09	0.2
M8	24	41	21	30	8	106	53	0.16	0.4
M10	31	52	23	35	10	125	62.5	0.28	0.64
M12	36	64	31	46	14	164	82	0.64	0.9
M16	41	75	40	56	17	200	100	1.17	1.6
M20	48	89	44	62	20	220	110	1.8	2.5

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 03 / 04

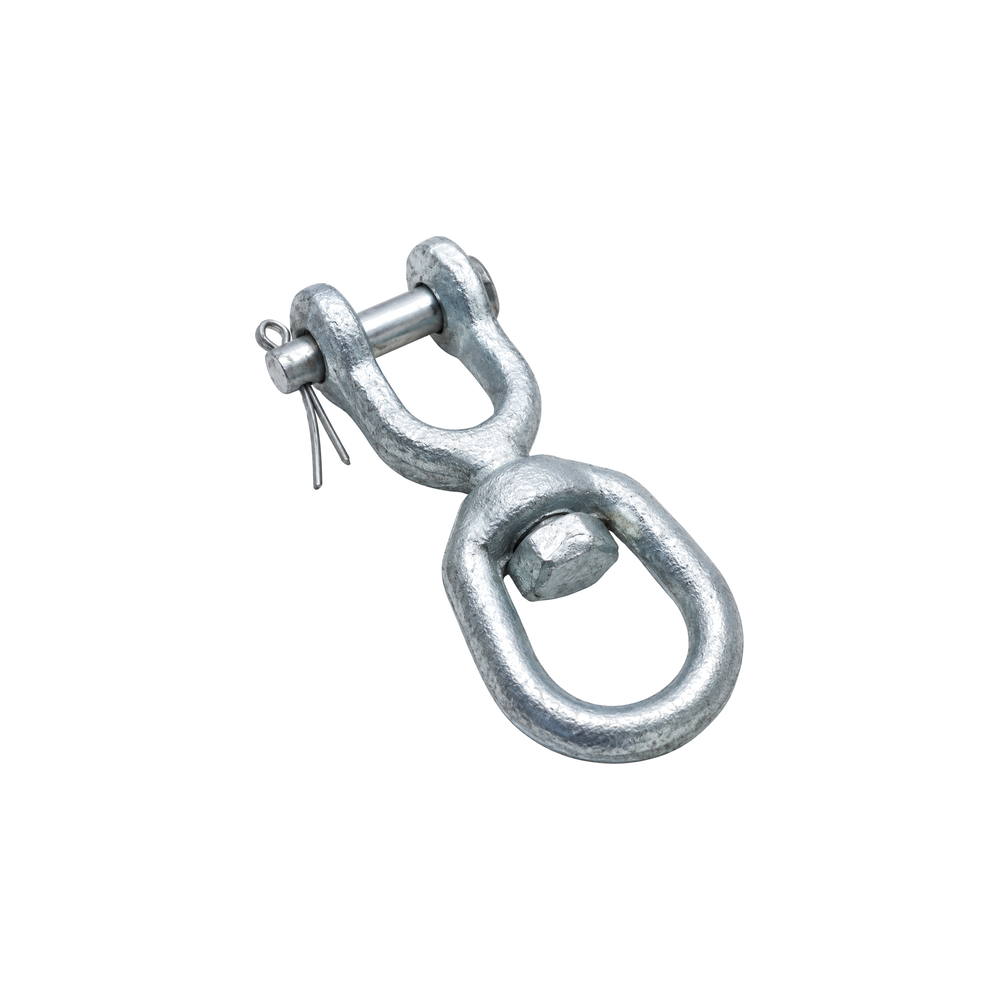

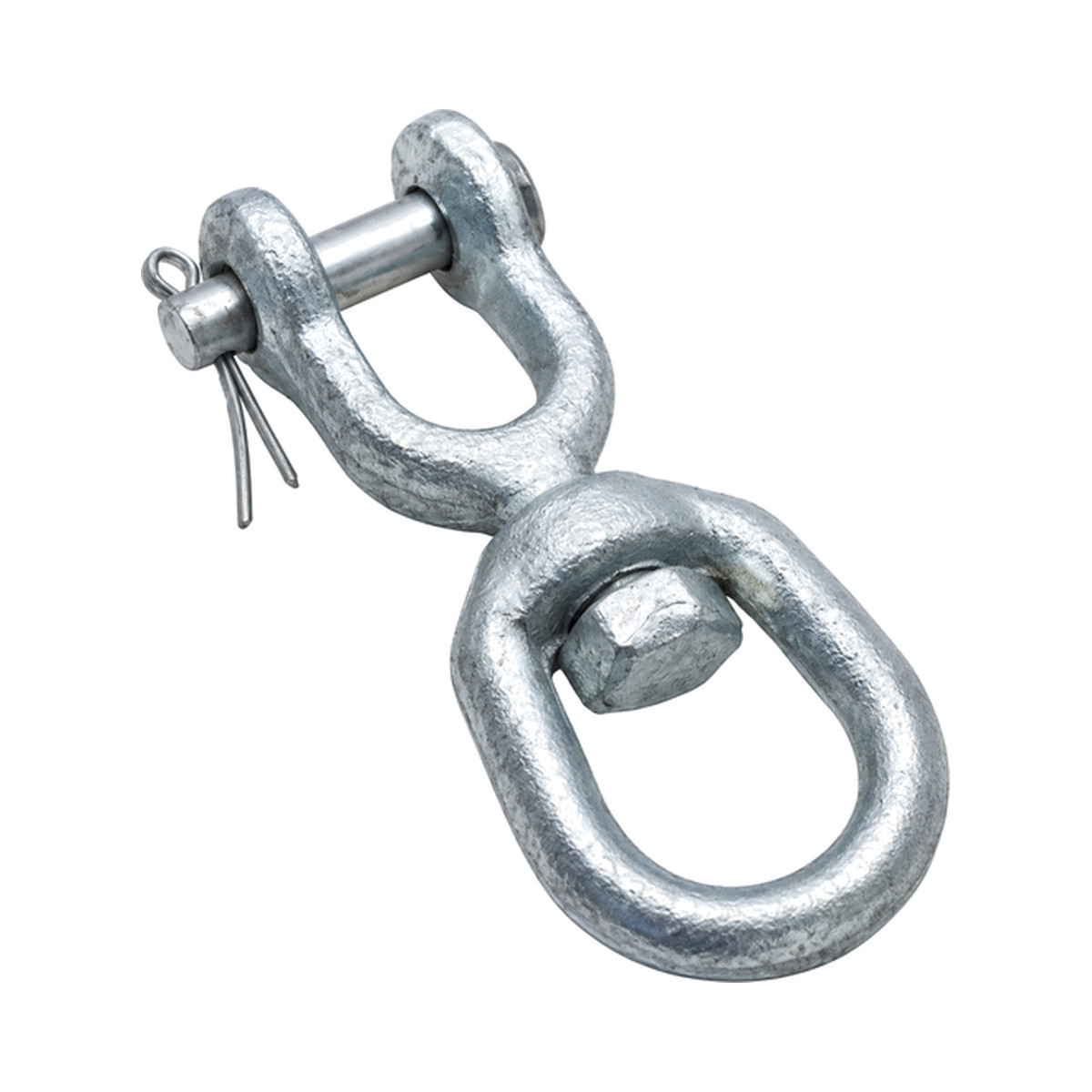

Clevis Swivel G-403

MaterialSteel C45E
SurfaceHot-dip galvanized
Size rangeM6 – M20

Specification table

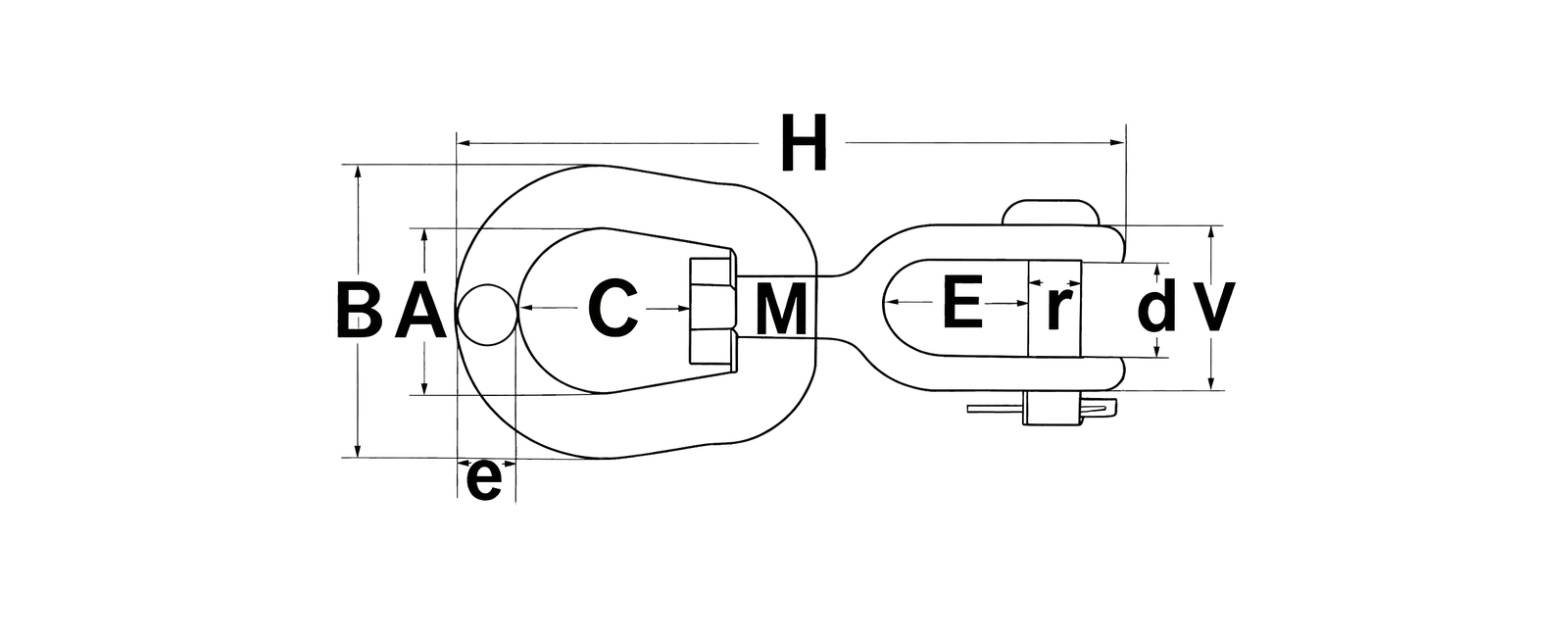

Clevis Swivel G-403 — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	A	B	C	E	e	H	v	Weight	WLL
mm	mm	mm	mm	mm	mm	mm	mm	kg/pc	t
M6	18	32	16	23	7	83	27	0.09	0.2
M8	24	41	21	24	8	97	28	0.16	0.4
M10	31	52	23	29	10	120	36	0.28	0.64
M12	36	64	31	33	14	145	44	0.59	0.9
M16	41	75	40	38	17	180	52	1.04	1.6
M20	48	89	44	43	20	205	63	1.71	2.5

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 04 / 04

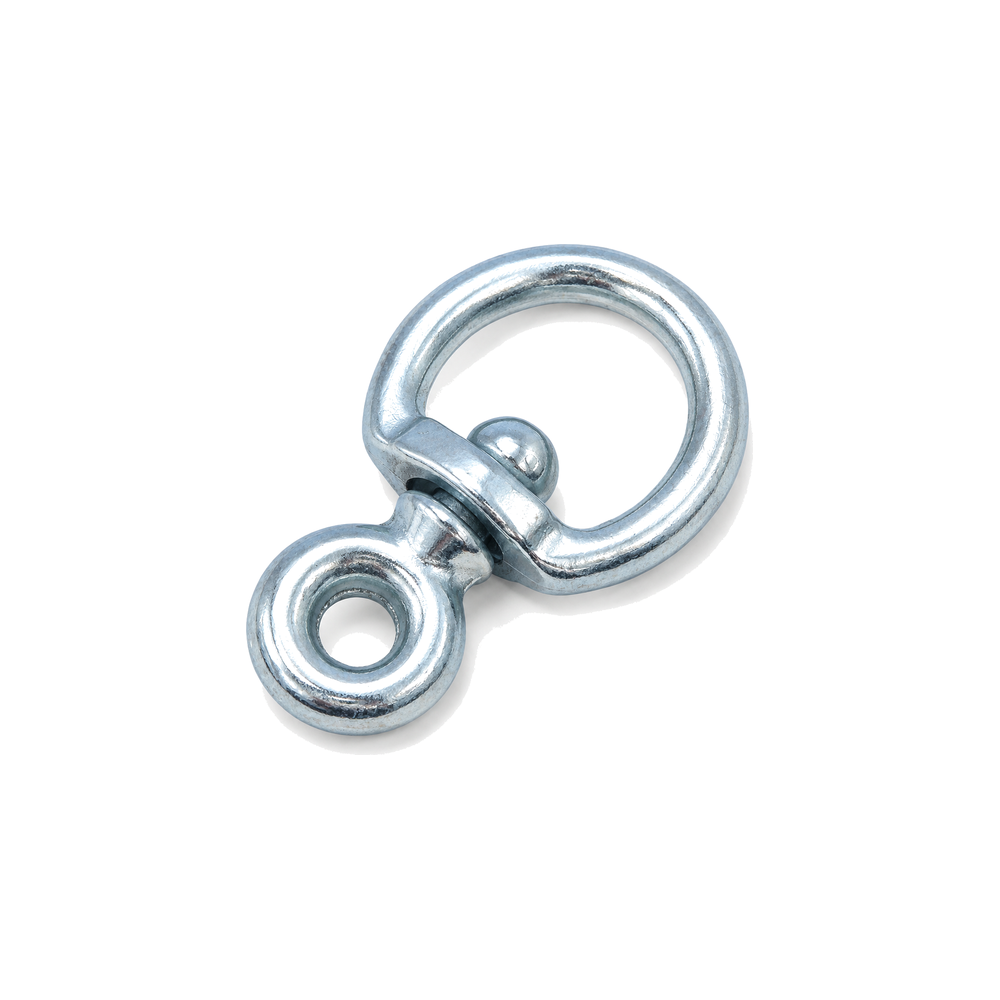

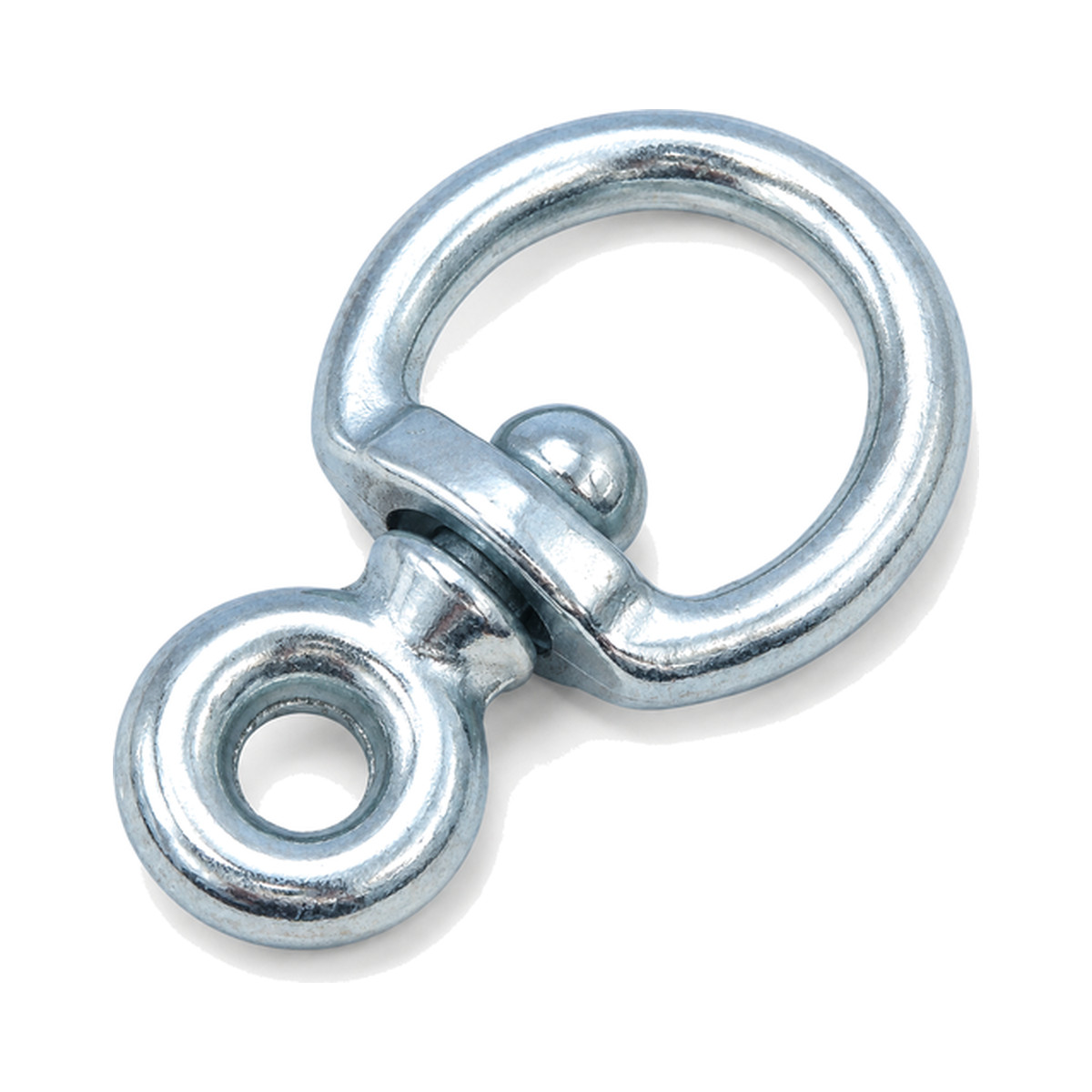

Round Swivel With Ring

MaterialCast iron
SurfaceElectro-galvanized
Size range4mm – 10mm

Specification table

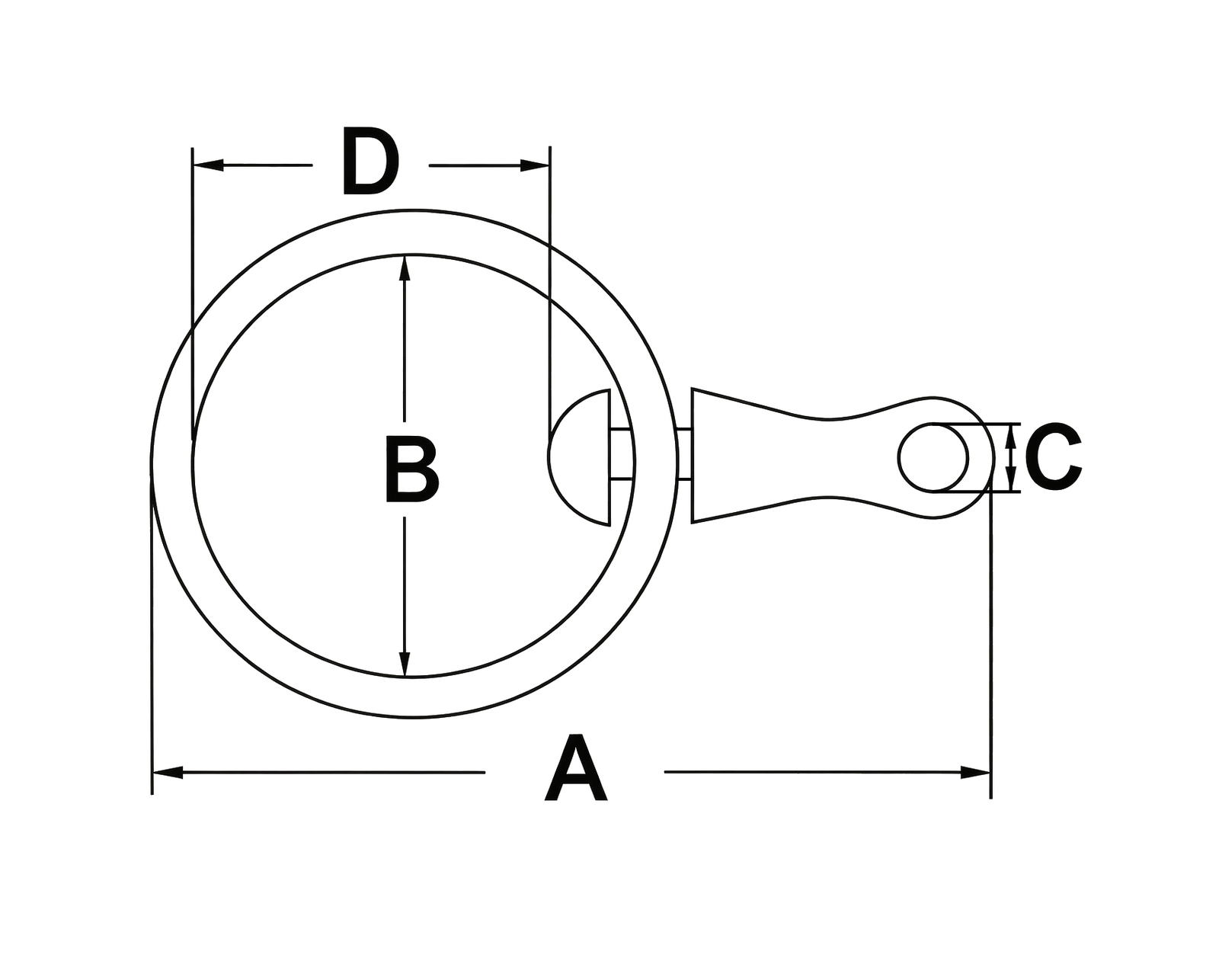

Round Swivel With Ring — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	A	B	C	D	Weight
mm	mm	mm	mm	mm	g/pc
4mm	42	22	6	13	17
5mm	77	32	8	23	47
6mm	87	34	9	24	72
8mm	110	46	10	35	157
10mm	113	47	12	25	265

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

These pages cover the same job from a different angle.

WLL & safety factor

Open →

How to select

Choose eye-eye where both ends connect to chain or fittings with a hole; choose clevis where one end must bolt to a plate or eye bolt.
Swivels relieve twisting in lifting and towing; size the swivel to the chain or rope diameter it serves.
Confirm the load rating for the exact size when you order — swivels are not all rated for lifting.

Applications

Lifting and hoistingTowing and recoveryMarine and mooringChain and rope anti-twistSuspension and displayAgricultural and utility

Safety & use notes

Swivels reduce twist but are not a substitute for a rated rotating lifting point unless marked.
Keep the swivel clean so it rotates freely.
Withdraw a swivel that is bent, seized or shows worn bearing surfaces.

Model types, related standards and manufacturing

Types & standards

Chain swivel, eye-eye (G-401 / G-402)A rotating link with an eye at each end that keeps the load from twisting the chain or rope in hoisting and towing.
Clevis (jaw) swivel (G-403)One end is a clevis jaw that bolts to a fitting, the other an eye, for applications needing a rigid pinned connection plus rotation.
Round swivel with ringA compact swivel with an integral ring, used where a permanent rotating attachment is needed in a small space.

Manufacturing

How it is made

Components in this group are produced by the route that suits the part — forging for load-bearing items, forming or machining for the rest.
Threads, bores and bearing surfaces are machined and gauged.
Assemblies are put together and checked for movement where they have moving parts.
Surface treatment is applied, then a final visual and dimensional check before packing.

What to check on receipt

The part matches the drawing or sample it was ordered against.
Threads and bores are clean and within tolerance.
No cracks, distortion or sharp edges at the load-bearing points.

FAQ

What does a chain swivel do?

It lets the assembly rotate so the chain or rope does not twist under load during lifting or towing.

Eye-eye or clevis swivel?

Eye-eye connects to chain or holed fittings at both ends; clevis has a bolted jaw at one end for a pinned connection.

Are swivels rated for lifting?

Some are, some are not. We state the working load limit for the exact size you order; do not assume a lifting rating.
