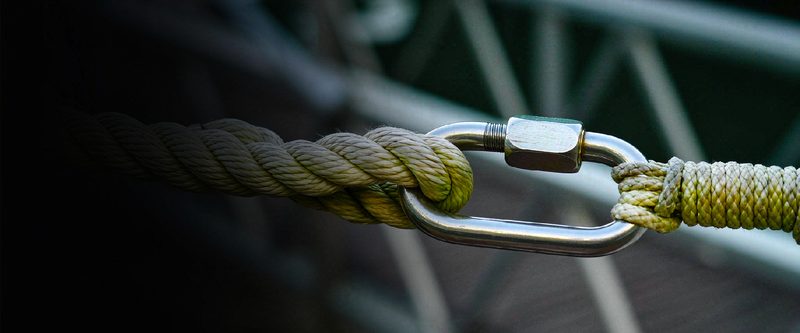

A quick link is a screw-gate connecting link for closing a chain or joining fittings. It is used for securing, light connecting and field chain repair.
Product line
Models in this line
Every model in this line has its own catalogue photo, dimension table and drawing. Select a model to see its full detail below.

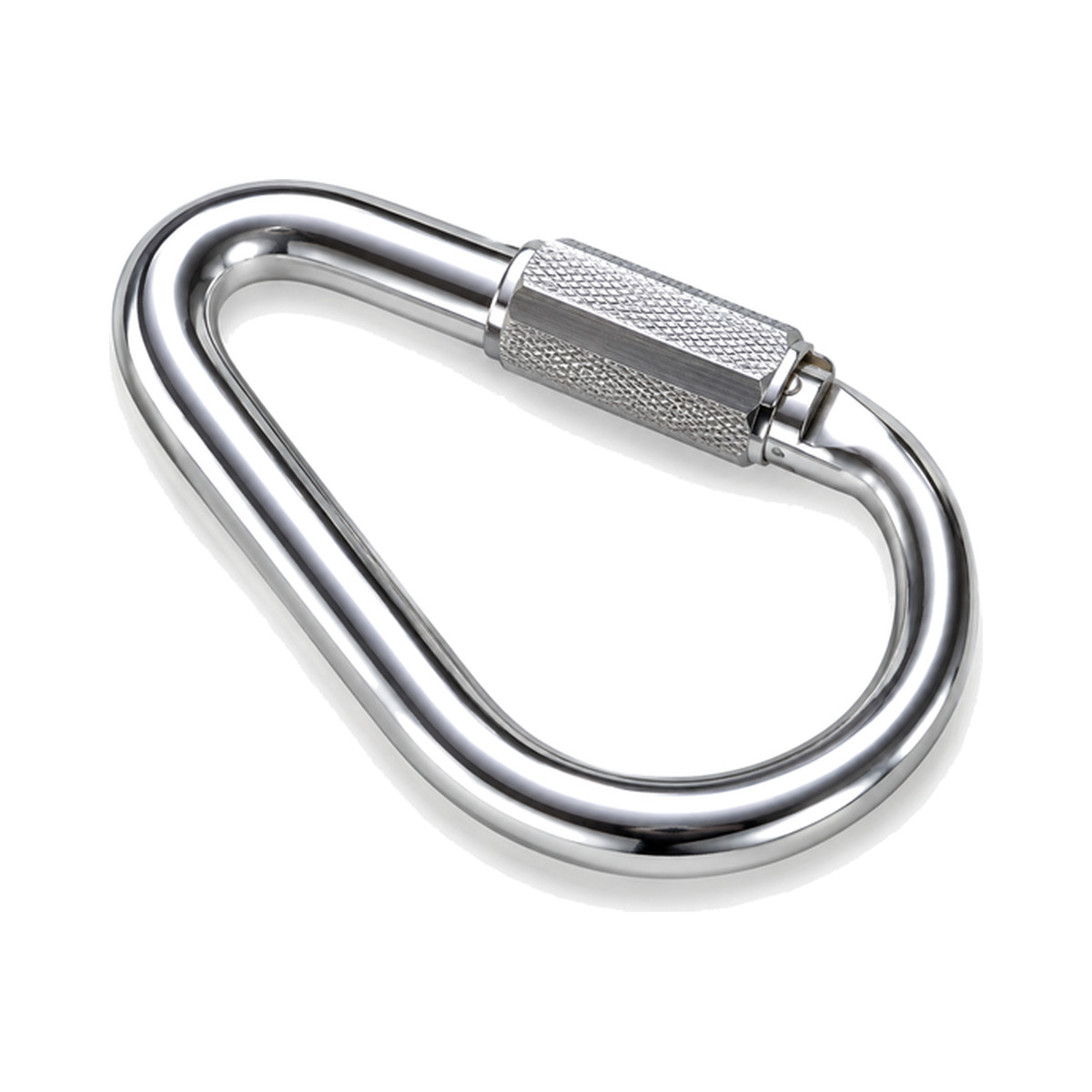

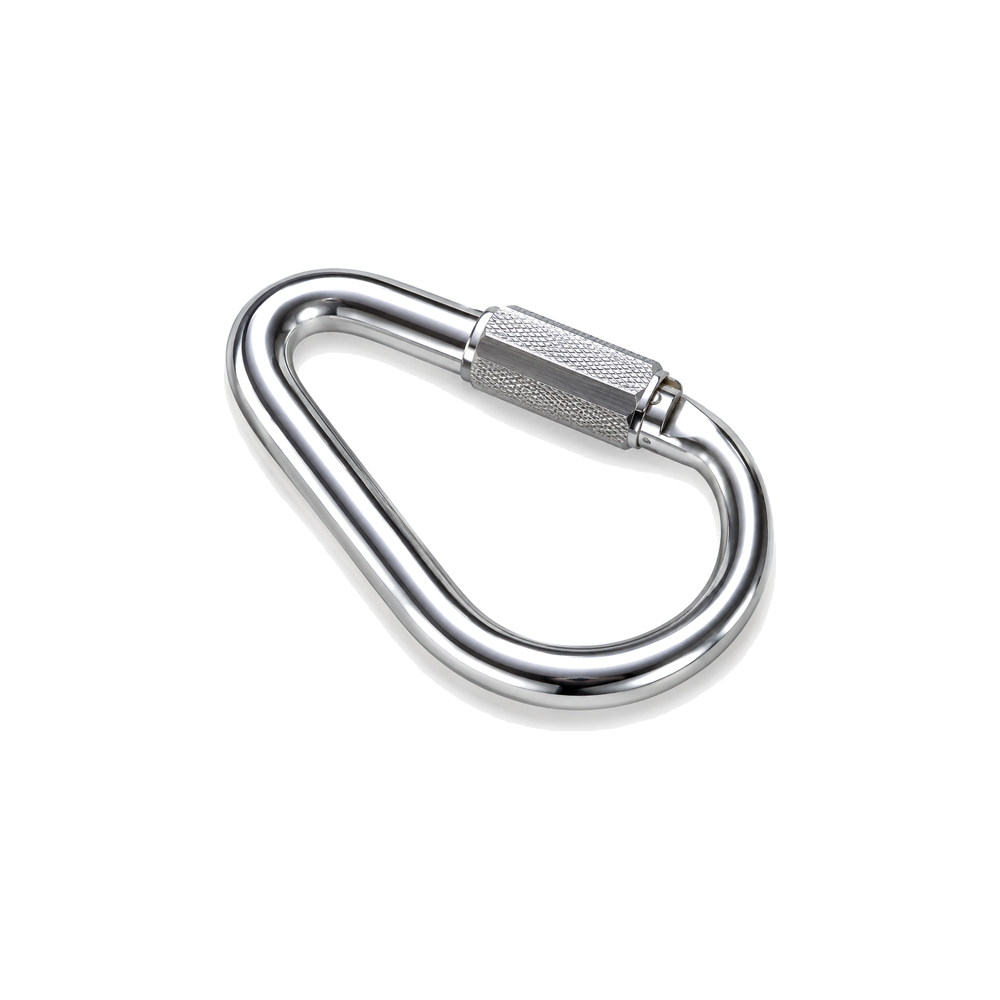

Oval Quick Link
Model 01 / 05
Oval Quick Link
MaterialSteel Q235B
SurfaceElectro-galvanized
Size range3.5mm – 16mm
Specification table

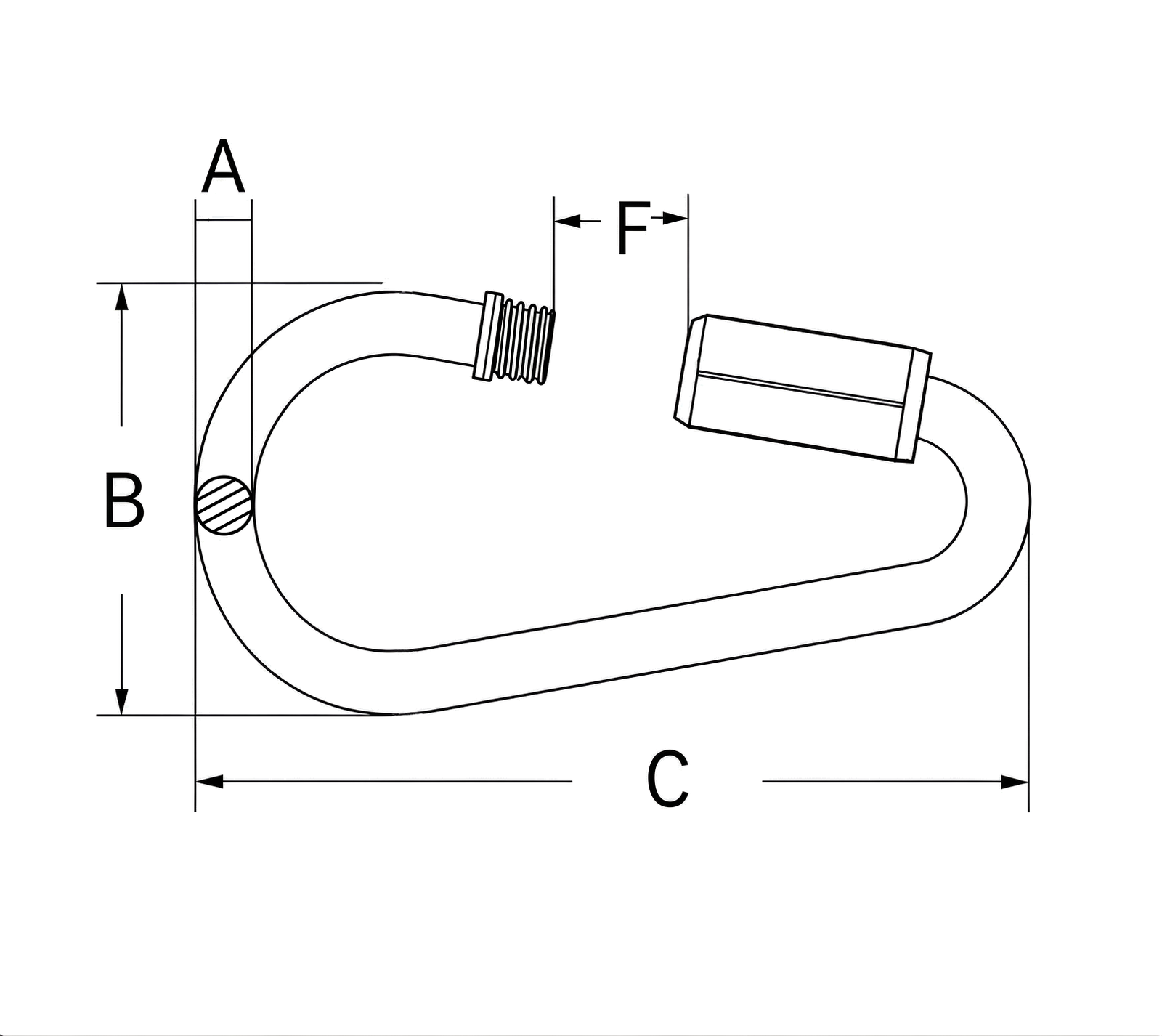

Dimensional drawing — shows the dimension symbols used in the table.
Size
Ø A
B
C
F
WLL
Weight
mm
mm
mm
mm
mm
kg*
g/pc
3.5mm
3.5
19
38
5.5
50
8.4
4mm
4
21
42
6
70
11.8
5mm
5
25
49
6.5
90
19.9
6mm
6
29
57
8
120
31
7mm
7
33
66
10
180
52
8mm
8
37
73
10
250
70
9mm
9
40
82
10
300
100
10mm
10
44
90
12
350
130
11mm
11
48
98
14
400
172
12mm
12
52
107
16
450
217
14mm
14
60
124
19
550
366
16mm
16
66
140
20
630
514
Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

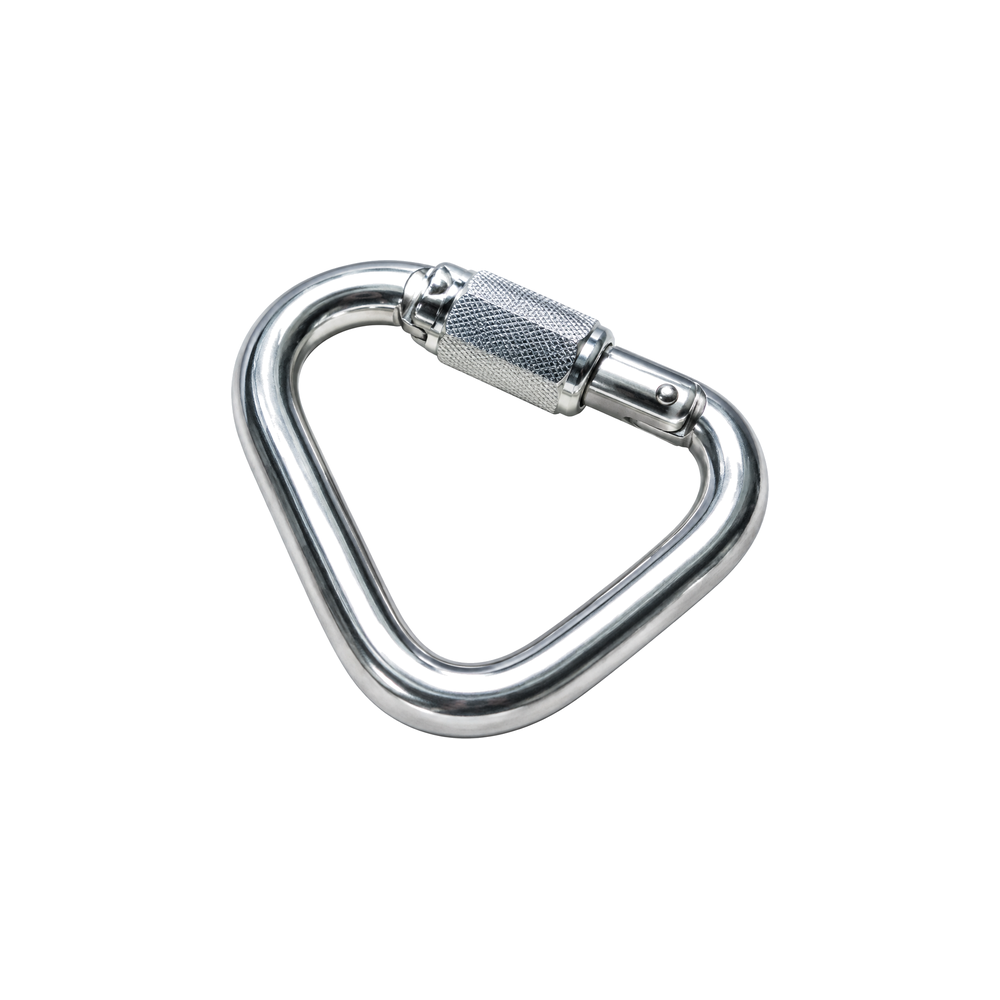

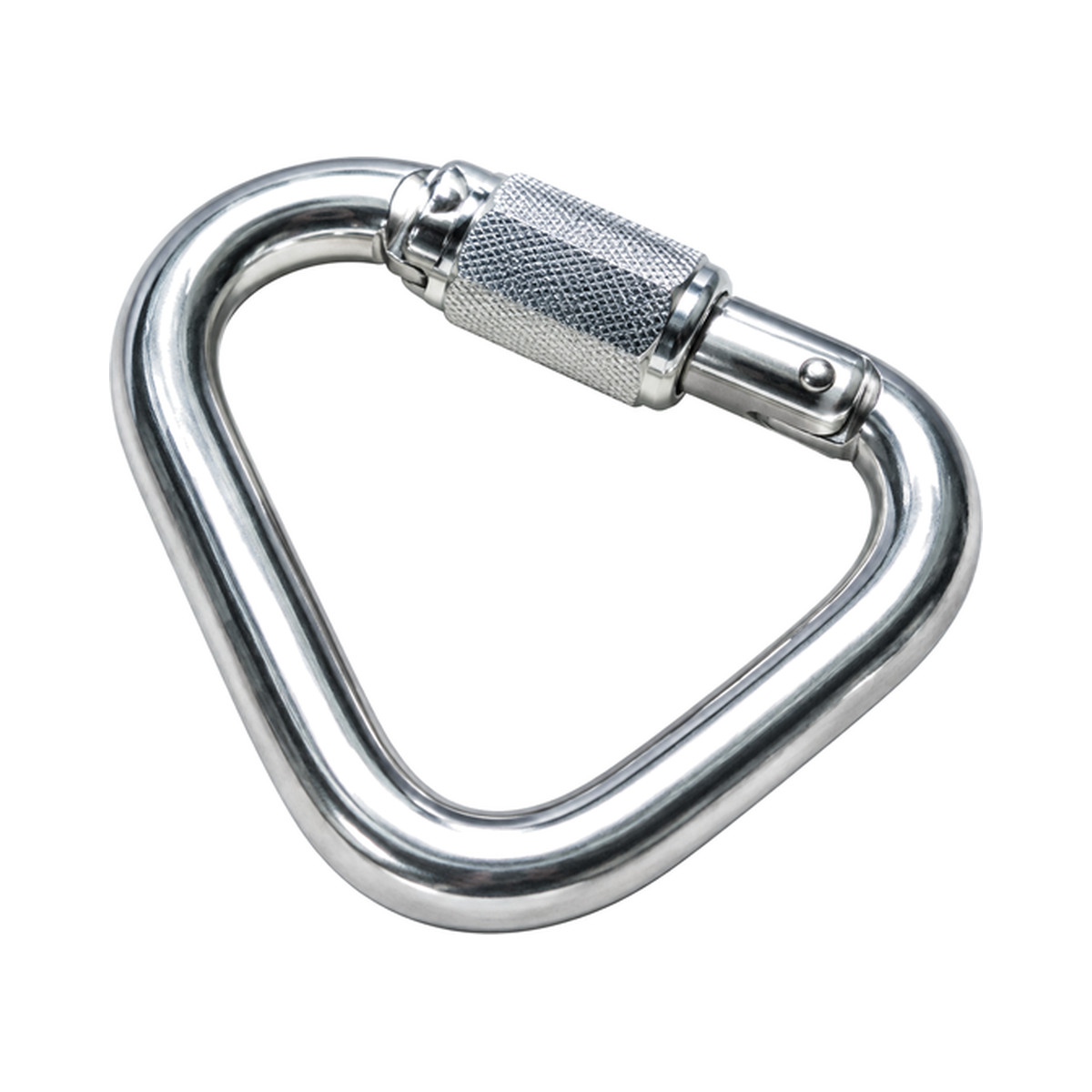

Delta Quick Link
Model 02 / 05
Delta Quick Link
MaterialSteel Q235B
SurfaceElectro-galvanized
Size range4mm – 12mm
Specification table

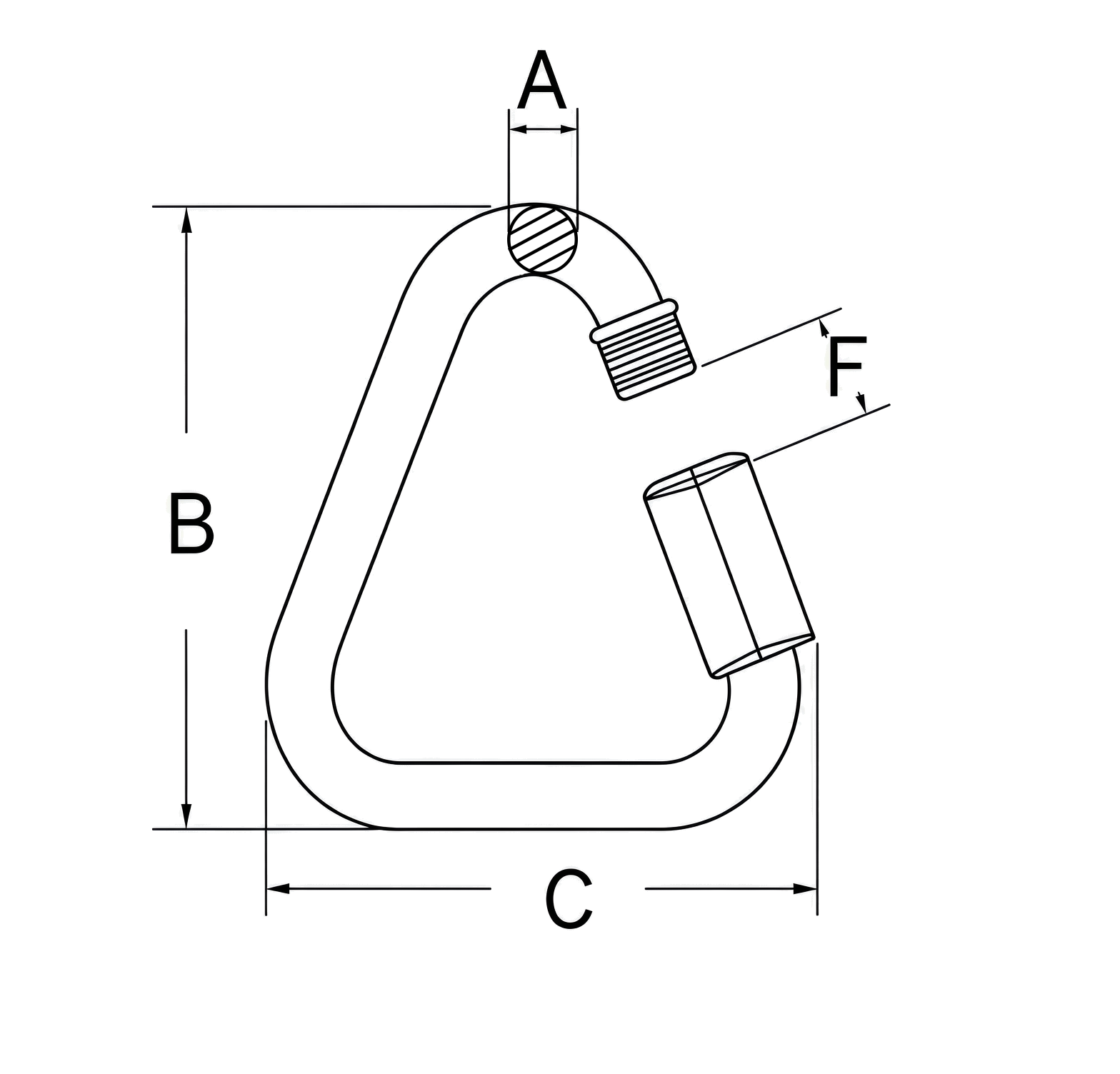

Dimensional drawing — shows the dimension symbols used in the table.
Size
Ø A
B
C
F
WLL
Weight
mm
mm
mm
mm
mm
kg*
g/pc
4mm
4
40
37
7
70
13
5mm
5
50
42
7
90
23
6mm
6
58
49
7
120
37
8mm
8
73
62
9
250
85
10mm
10
90
71
14
350
149
12mm
12
103
82
14
450
244
Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

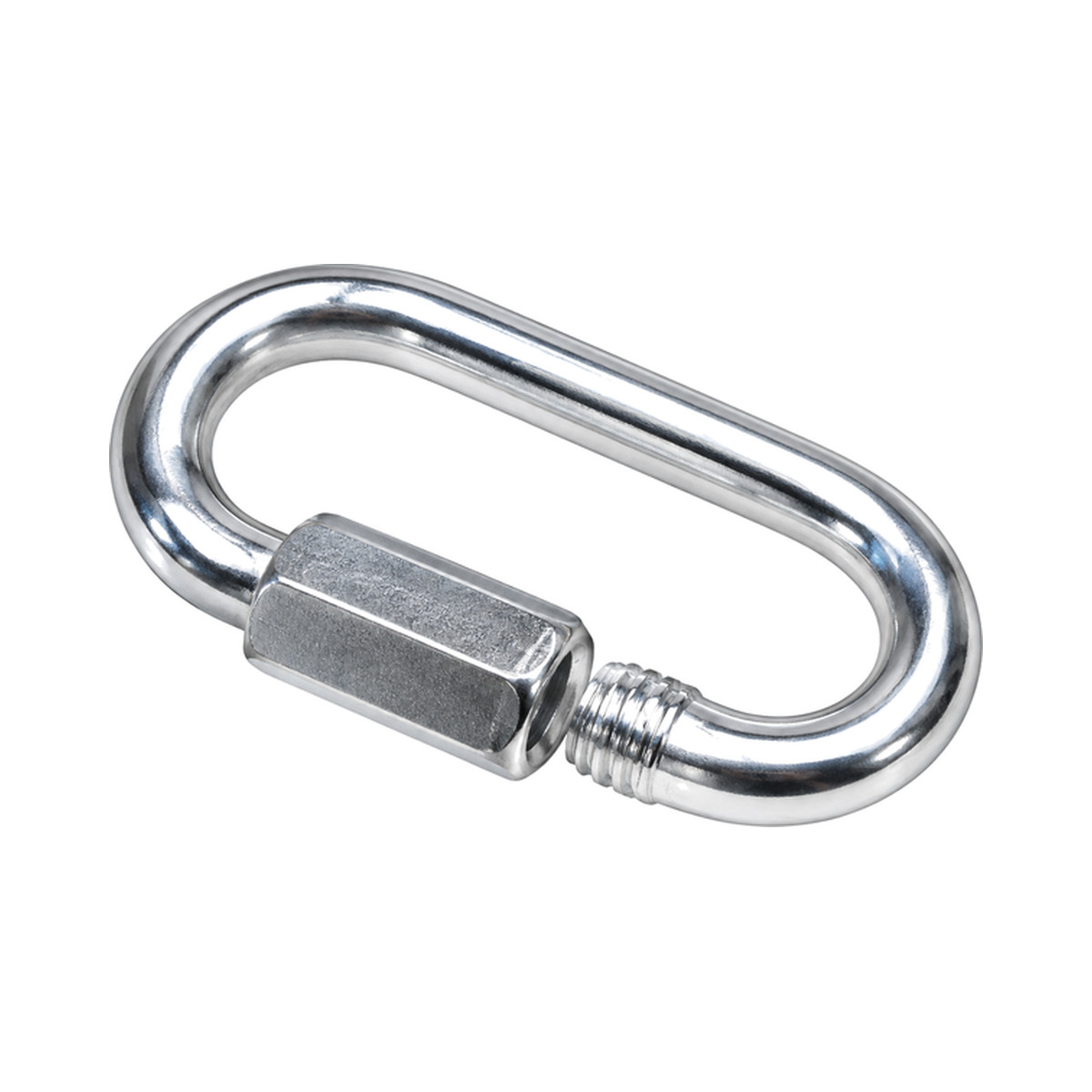

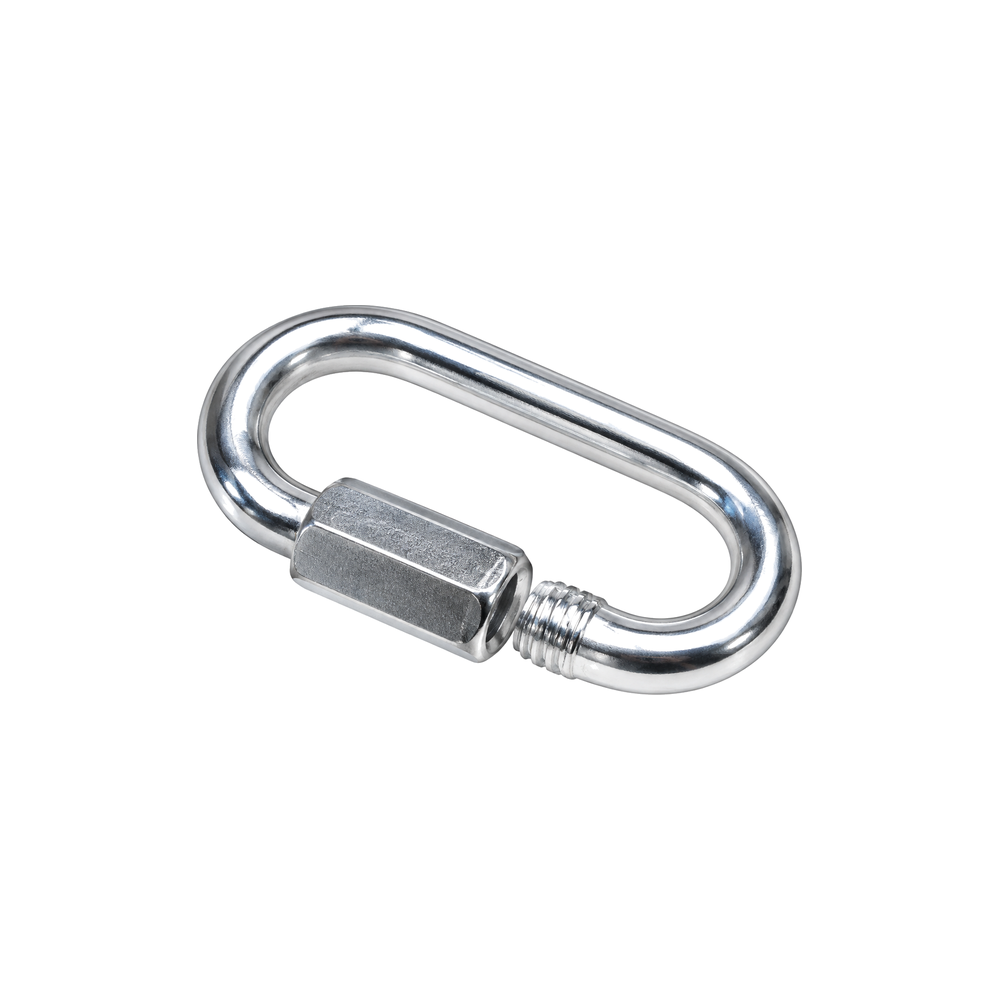

Pear-shaped Quick Link
Model 03 / 05
Pear-shaped Quick Link
MaterialSteel Q235B
SurfaceElectro-galvanized
Size range4mm – 10mm
Specification table

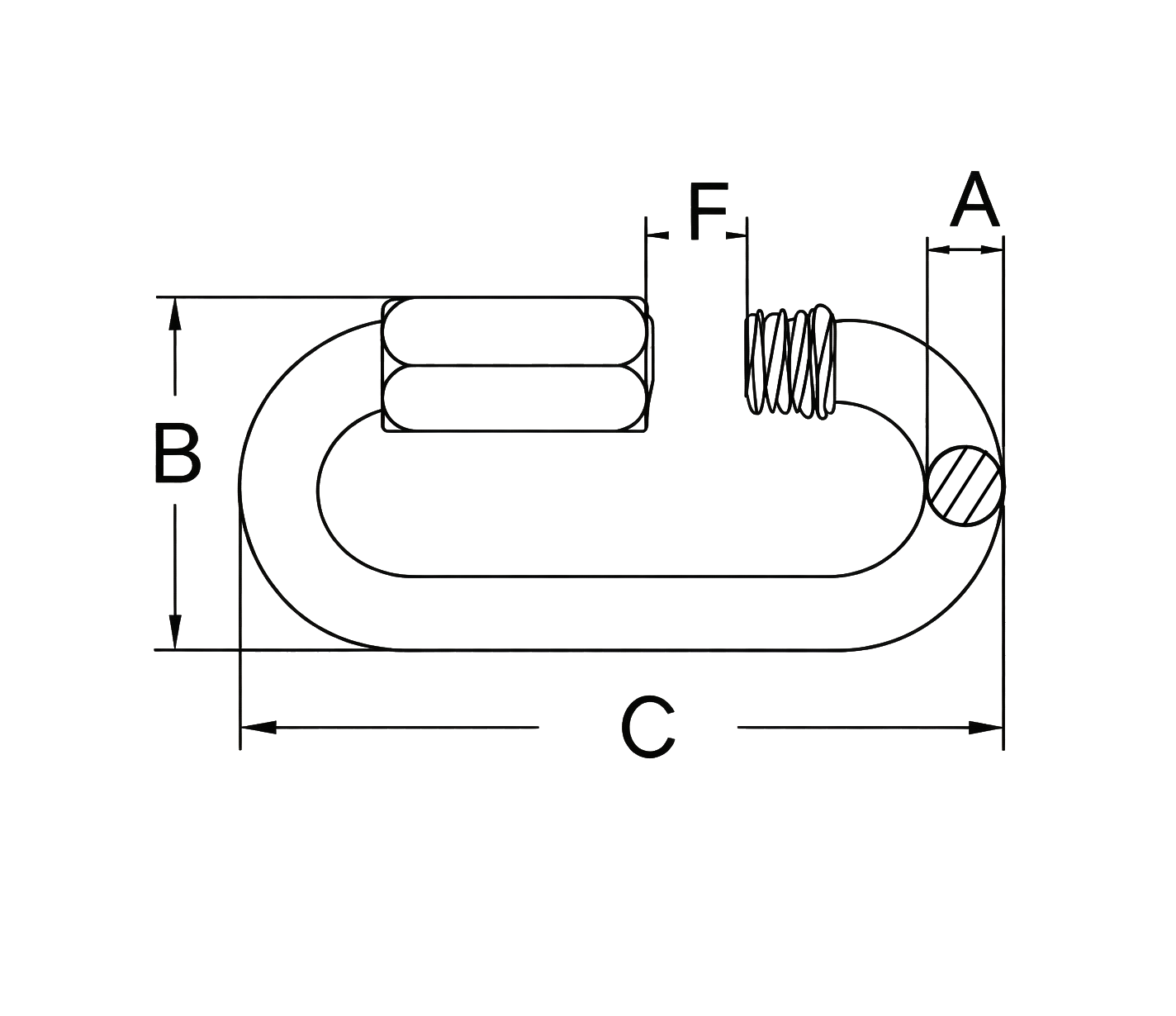

Dimensional drawing — shows the dimension symbols used in the table.
Size
Ø A
B
C
F
WLL
Weight
mm
mm
mm
mm
mm
kg*
g/pc
4mm
4
27
58
10
70
15.5
5mm
5
33
72
14
90
27
6mm
6
45
80
15
120
43
8mm
8
54
100
16
250
97
10mm
10
62
120
20
350
184
Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

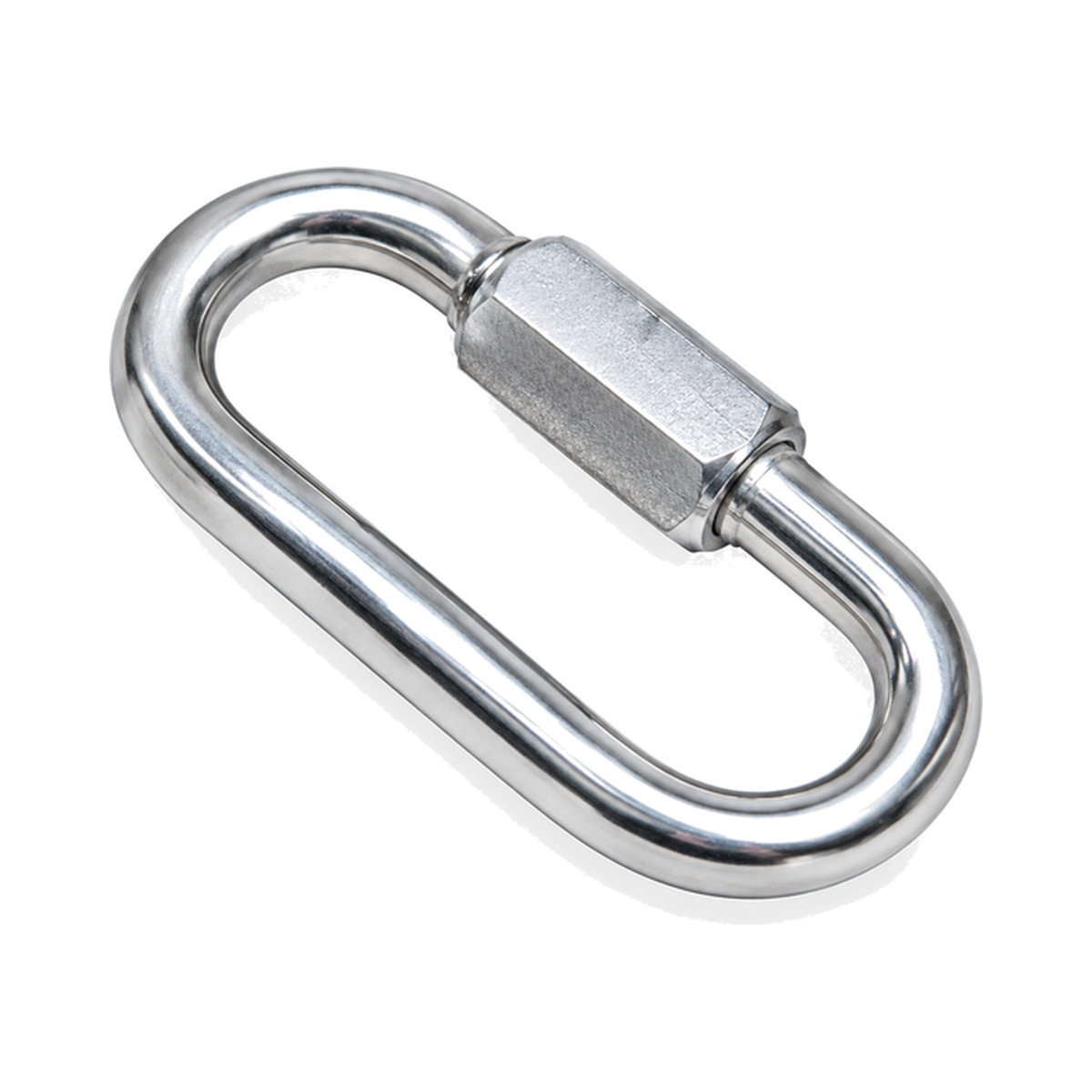

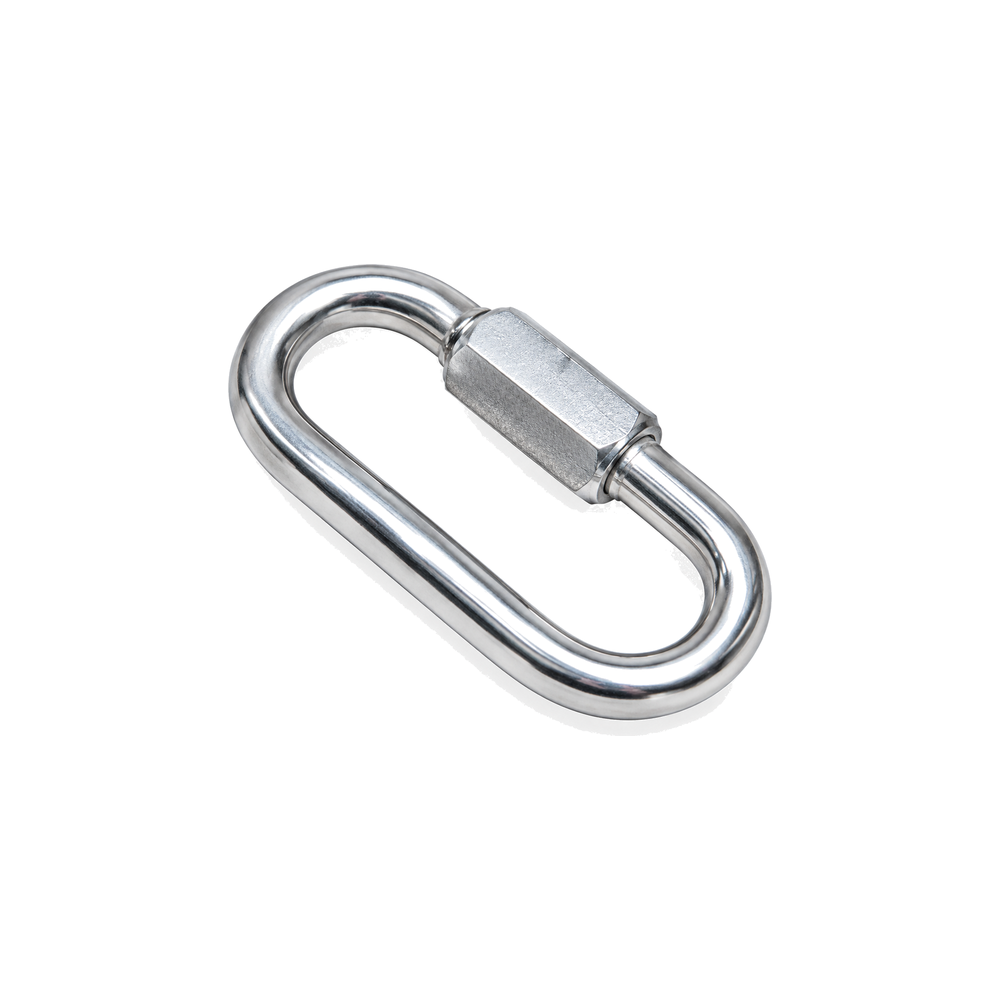

Long Wide-jaw Quick Link
Model 04 / 05
Long Wide-jaw Quick Link
MaterialSteel Q235B
SurfaceElectro-galvanized
Size range4mm – 10mm
Specification table

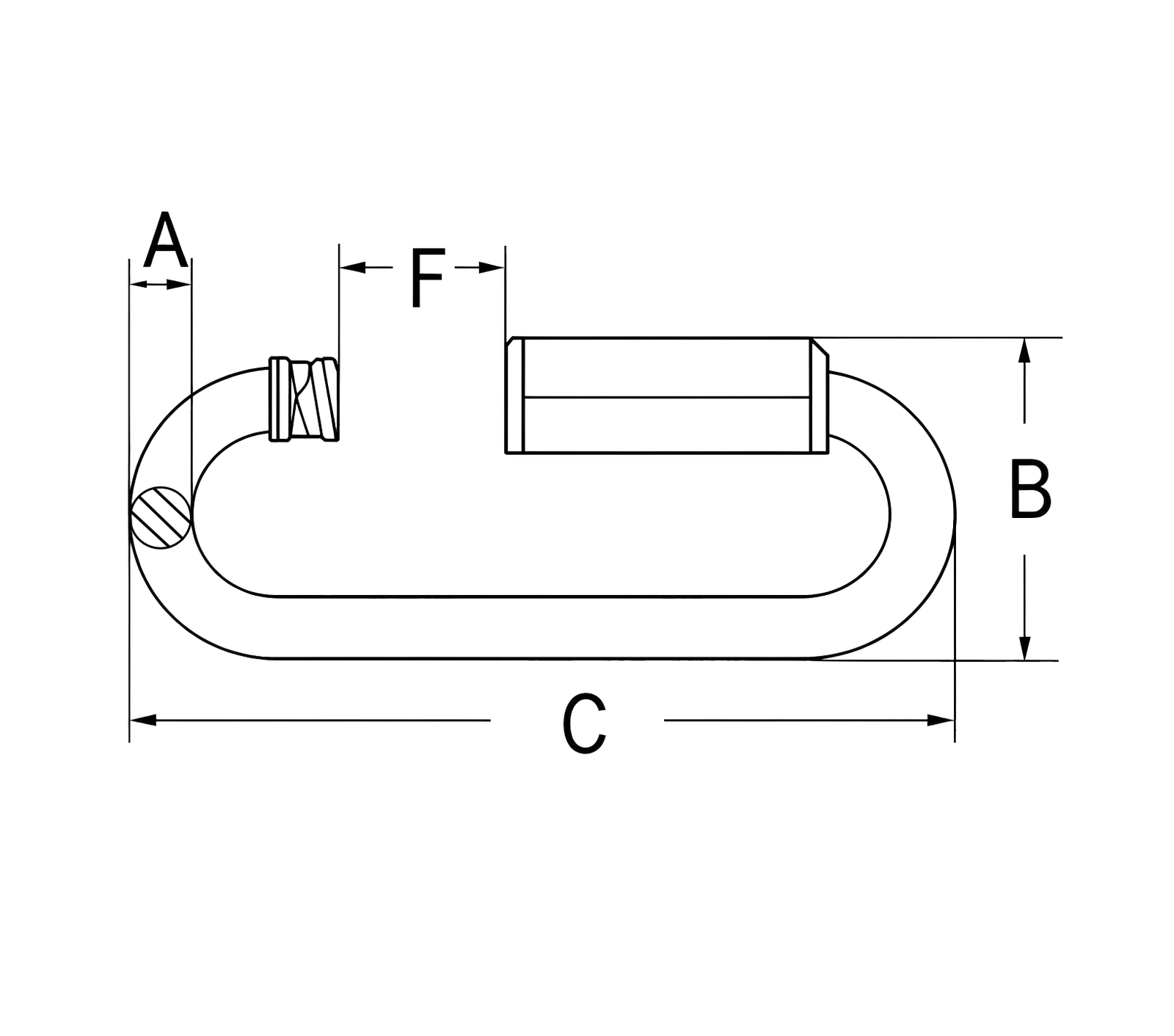

Dimensional drawing — shows the dimension symbols used in the table.
Size
Ø A
B
C
F
WLL
Weight
mm
mm
mm
mm
mm
kg*
g/pc
4mm
4
23
53
8
70
15
5mm
5
25
63
12
90
25
6mm
6
29
70
15
120
38
8mm
8
37
93
17
250
89
10mm
10
43
103
17
350
151
Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

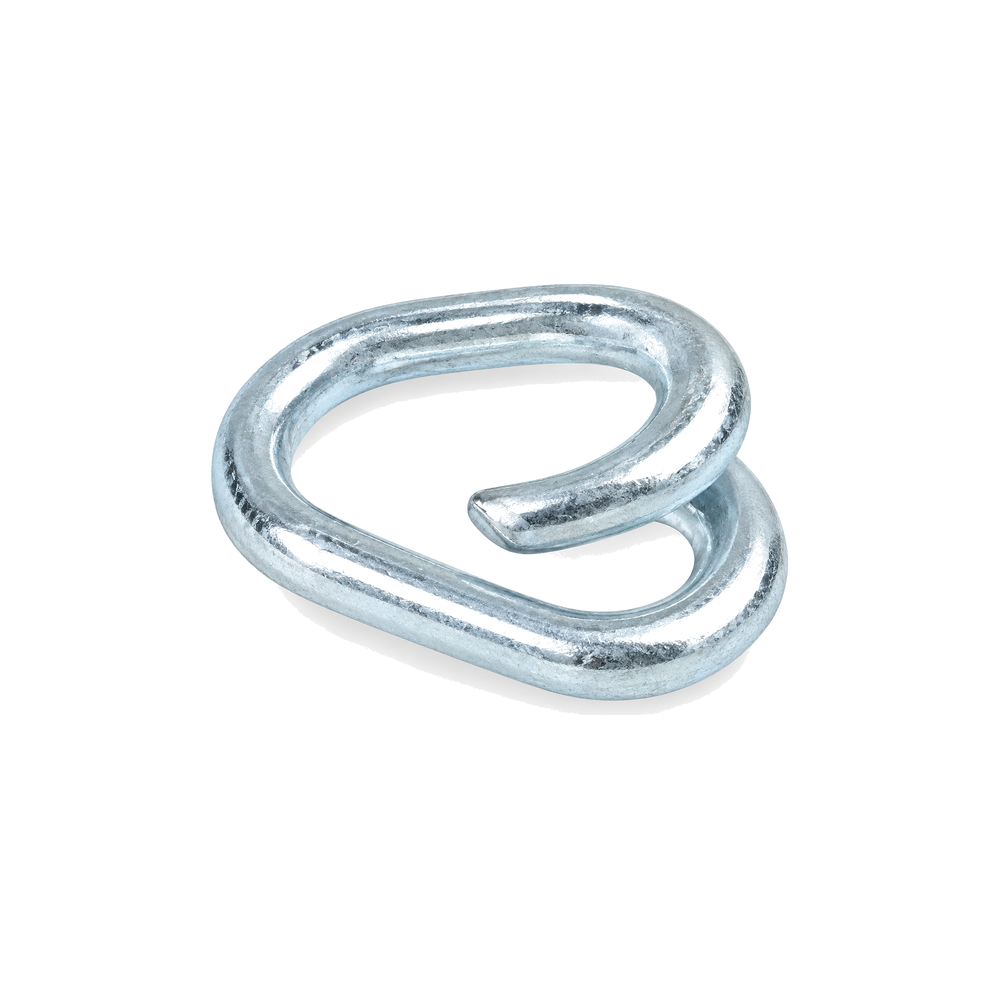

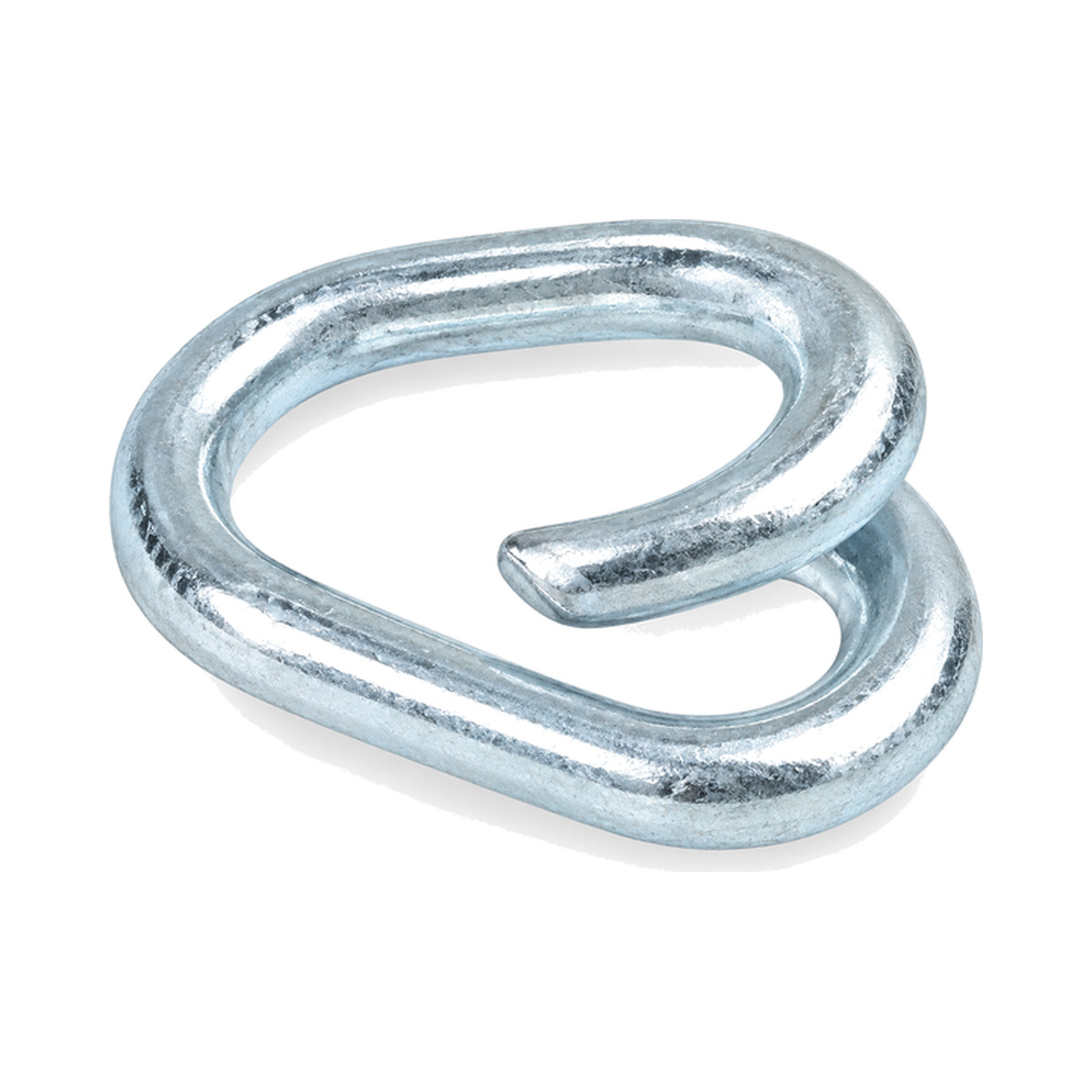

Repair Link
Model 05 / 05
Repair Link
MaterialSteel Q235B
SurfaceElectro-galvanized
Size range3mm – 10mm
Specification table

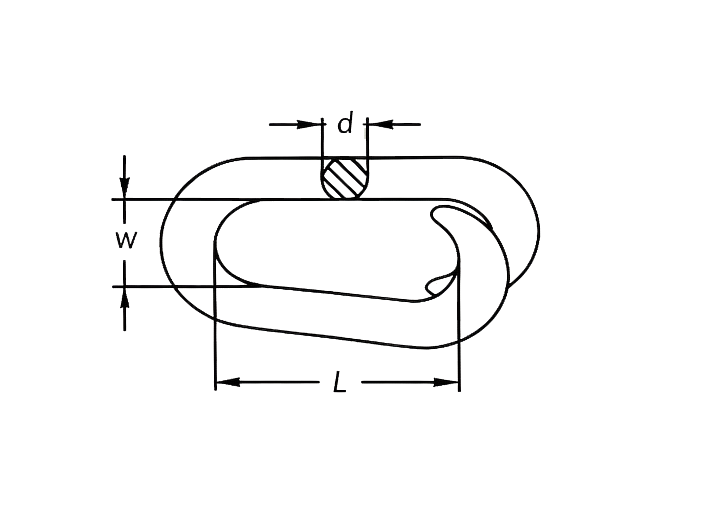

Dimensional drawing — shows the dimension symbols used in the table.
Size
L
d
w
Weight
mm
mm
mm
mm
g/pc
3mm
16.5
3
7
3.9
4mm
20
4
8
7.8
5mm
25
5
12
15.5
6mm
30
6
13
28
7mm
33
7
15
41
8mm
39
8
18
65
10mm
45
10
18
93
Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.
Related pages
These pages cover the same job from a different angle.
Pick the profile by how the link sits in the assembly — oval for general use, delta where it must lie flat, pear where one end needs a larger opening.
Match the steel grade and finish to the environment; electro-galvanized suits indoor and general use, hot-dip galvanized is for outdoor and marine.
Quick links are for connecting and securing, not for overhead lifting unless the grade and marking say so.
Applications
Pet and livestock securingKey rings and general hardwareLight chain connectionsField chain repairDisplay and fixture hangingDIY and fencing
Safety & use notes
Close the screw gate fully and check it cannot back off.
Do not use a deformed or thread-damaged link.
Confirm the working load limit marked on the link before use.
Model types, related standards and manufacturing
Types & standards
Types & standards
Oval / round quick linkThe common connecting link for light chain, pet leads, key rings and general securing where a closed loop is needed.
Delta (triangular) quick linkTriangular profile with a wider base, used where the link must sit flat or bear load on two sides.
Pear-shaped quick linkAsymmetric profile giving a larger opening on one end; used where one side needs to pass a bulkier fitting.
Long wide-jaw quick linkExtended jaw increases the clear opening for thicker chain or multiple attachments.
Repair / lap linkOpenable link used to join or repair a length of chain in the field.
Manufacturing
How it is made
Components in this group are produced by the route that suits the part — forging for load-bearing items, forming or machining for the rest.
Threads, bores and bearing surfaces are machined and gauged.
Assemblies are put together and checked for movement where they have moving parts.
Surface treatment is applied, then a final visual and dimensional check before packing.
What to check on receipt
The part matches the drawing or sample it was ordered against.
Threads and bores are clean and within tolerance.
No cracks, distortion or sharp edges at the load-bearing points.
FAQ
FAQ
What is the difference between an oval and a delta quick link?
An oval quick link is a rounded loop for general connecting; a delta (triangular) link has a flat base and is used where the link must sit flat or take load across two sides.
Are quick links suitable for lifting?
Standard quick links are for connecting and securing, not overhead lifting, unless the grade and marking specifically certify a lifting rating.
Which finish should I choose?
Electro-galvanized for indoor and general use; hot-dip galvanized where the link faces outdoor or marine exposure.
