Galvanized swing hook with eye strap hanging on a timber post

Home/ Products/Swing Hooks

Swing Hooks & Hangers

Swing hooks and hangers are used where a line has to be hung rather than lifted: playground swing frames, suspended seating and light overhead fixtures. End fittings are either a snap hook or a D-shackle.

Product line

Models in this line

Every model in this line has its own catalogue photo, dimension table and drawing. Select a model to see its full detail below.

01Swing Hook With Snap Hook (threaded)3 sizes · M10x225 – M10x330
02Swing Hook With Snap Hook (wood Screw)2 sizes · M10x130 – M10x280
03Collar Round Hook With Snap Hook4 sizes · M10x50 – M10x120
04Collar Square Hook With Snap Hook1 sizes · M10x90
05Swing Hanger With Shackle Type D1 sizes · M12
06Swing Hanger With Shackle Type D+1 sizes · M12

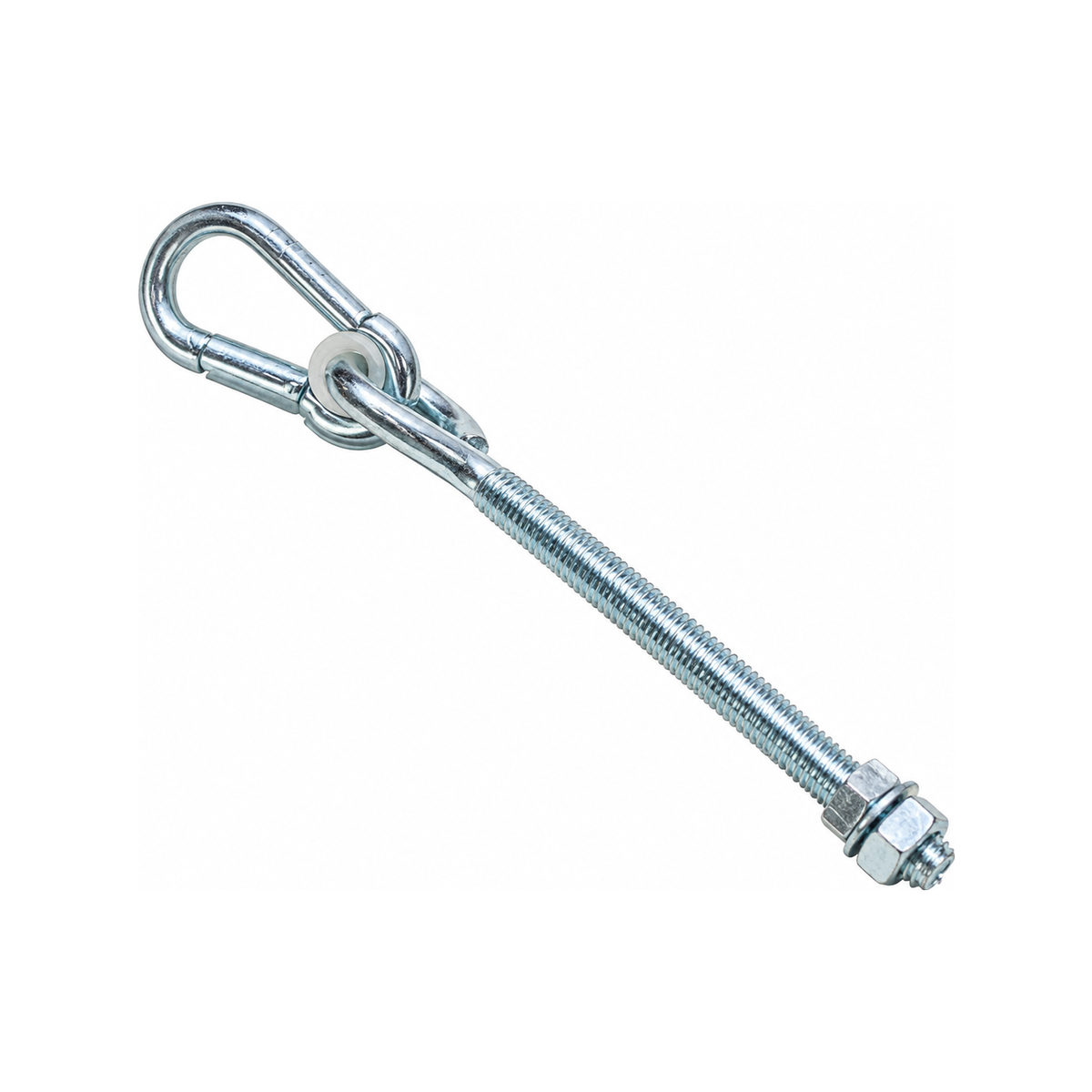

Swing Hook With Snap Hook (threaded)

Swing Hook With Snap Hook (threaded)

Model 01 / 06

Swing Hook With Snap Hook (threaded)

MaterialSteel Q235B
SurfaceElectro-galvanized
Size rangeM10x225 – M10x330

Specification table

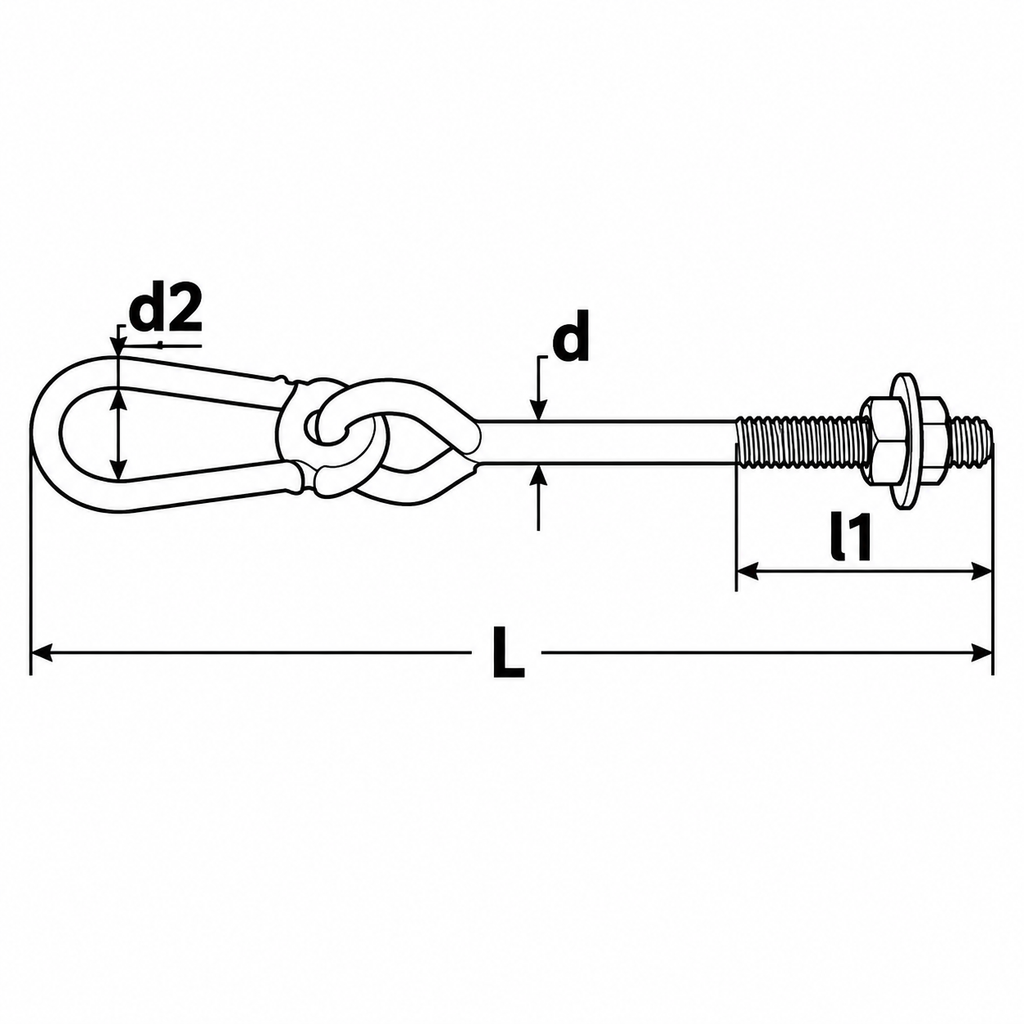

Swing Hook With Snap Hook (threaded) — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	Thread	l1	d2	d	Fmax*	Weight
mm	mm		mm	mm	mm	kg	g/pc
M10x225	225	M12	96	9.5	10.3	240	299
M10x280	280	M12	135	9.5	10.3	240	345
M10x330	330	M12	195	9.5	10.6	250	380

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

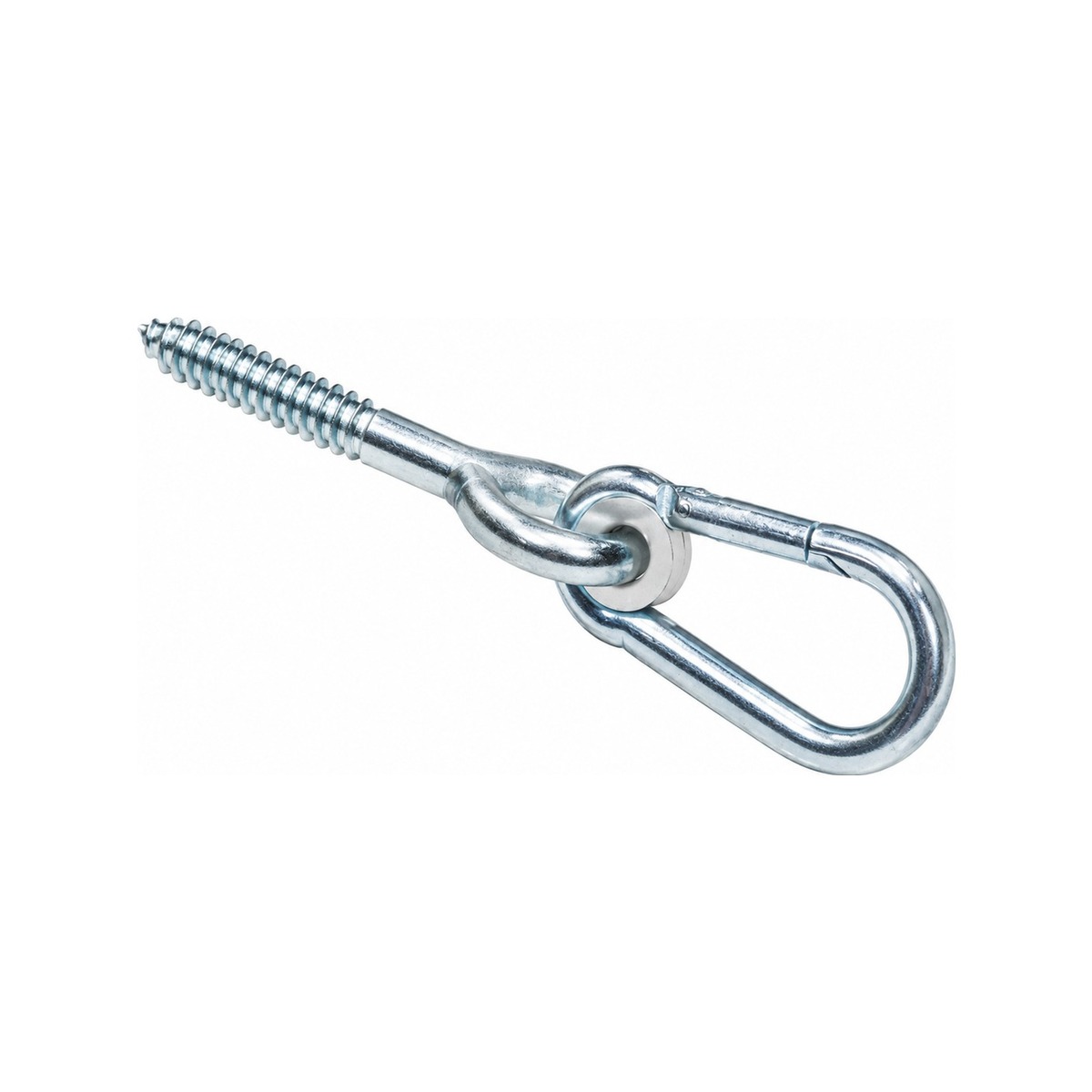

Swing Hook With Snap Hook (wood Screw)

Swing Hook With Snap Hook (wood Screw)

Model 02 / 06

Swing Hook With Snap Hook (wood Screw)

MaterialSteel Q235B
SurfaceElectro-galvanized
Size rangeM10x130 – M10x280

Specification table

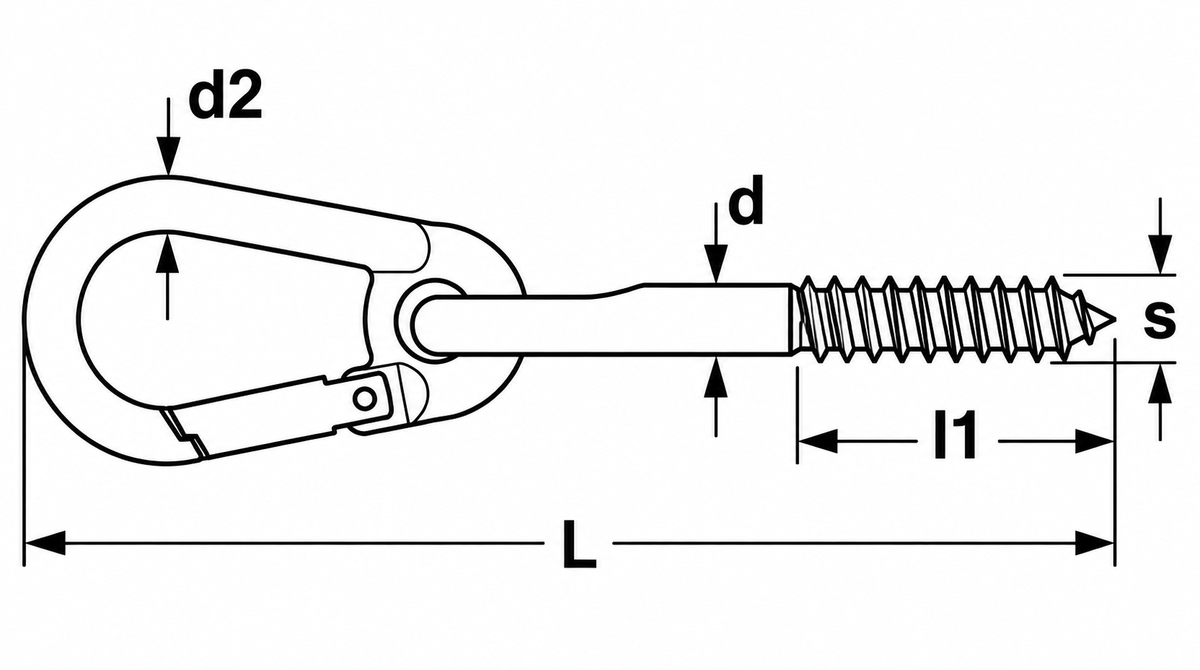

Swing Hook With Snap Hook (wood Screw) — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	s	l1	d2	d	Fmax*	Weight
mm	mm	mm	mm	mm	mm	kg	g/pc
M10x130	230	12.4	60	10	10.6	250	260
M10x280	280	12.4	70	10	10.6	250	298

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

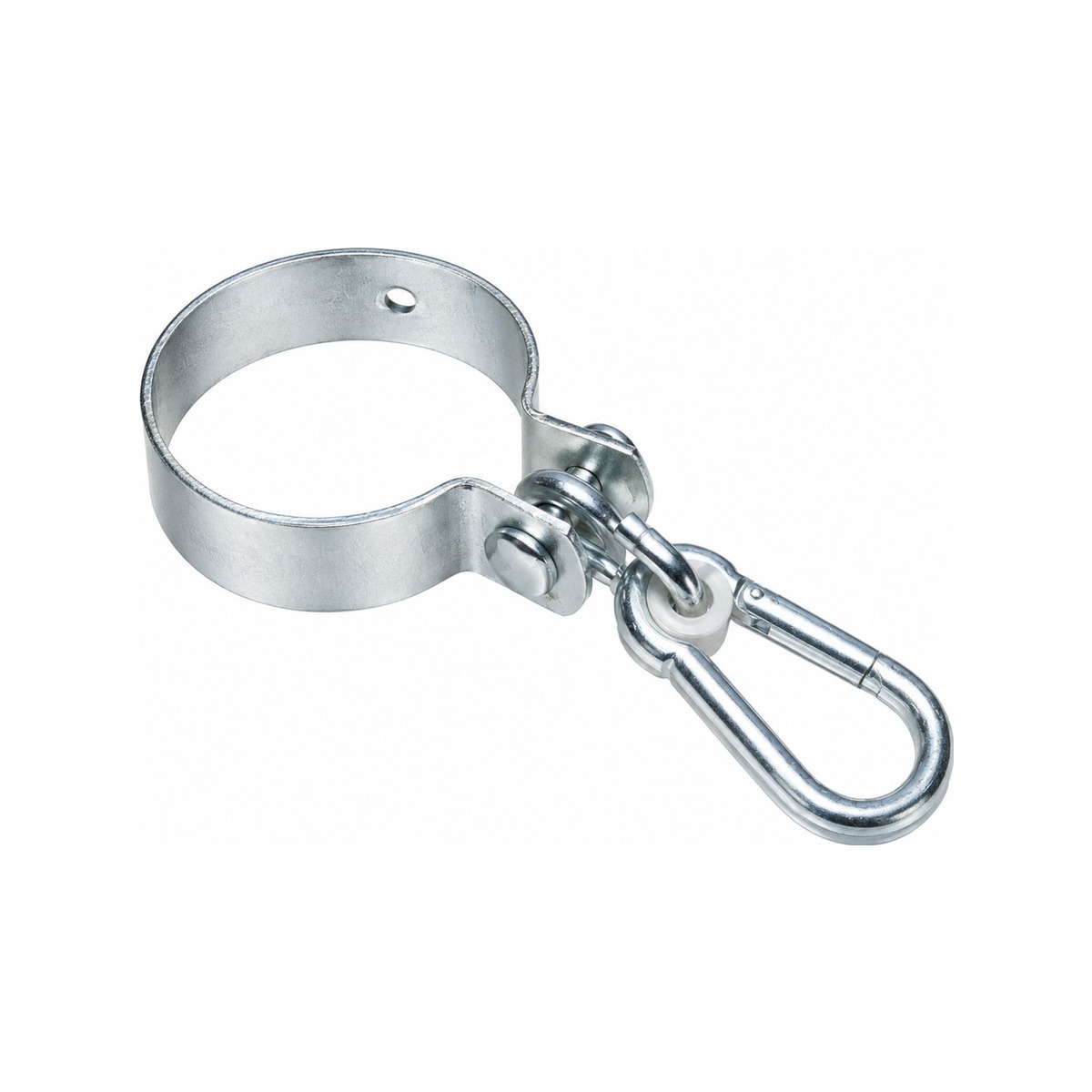

Collar Round Hook With Snap Hook

Collar Round Hook With Snap Hook

Model 03 / 06

Collar Round Hook With Snap Hook

MaterialSteel Q235B
SurfaceElectro-galvanized
Size rangeM10x50 – M10x120

Specification table

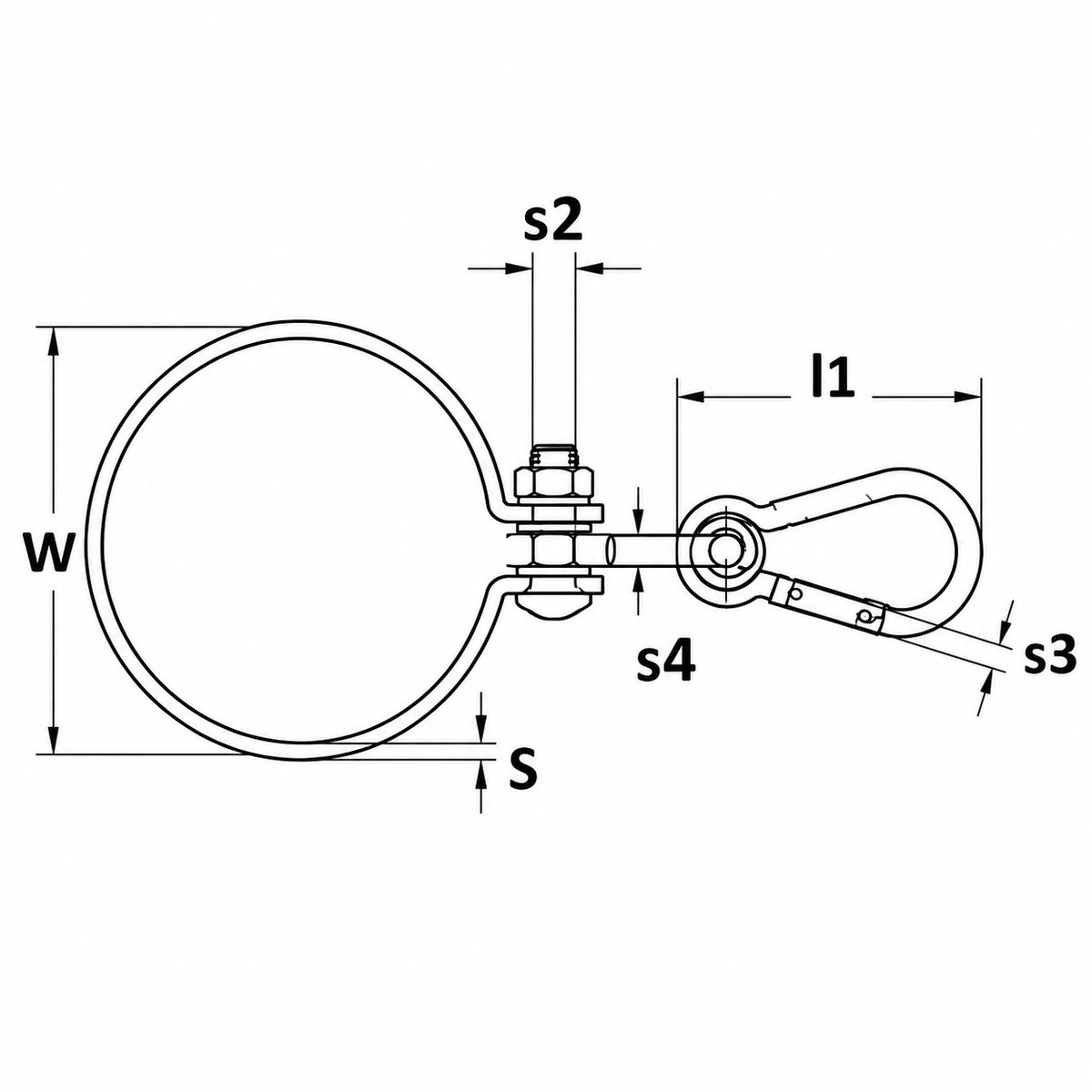

Collar Round Hook With Snap Hook — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	w	s2	l1	s3	s	s4	Weight
mm	mm		mm	mm	mm	mm	g/pc
M10x50	50	M10	100	9.6	3	7.8	370
M10x80	80	M10	100	9.6	3	7.8	459
M10x100	100	M10	100	9.6	3.5	7.8	492
M10x120	120	M10	100	9.6	3.5	7.8	550

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

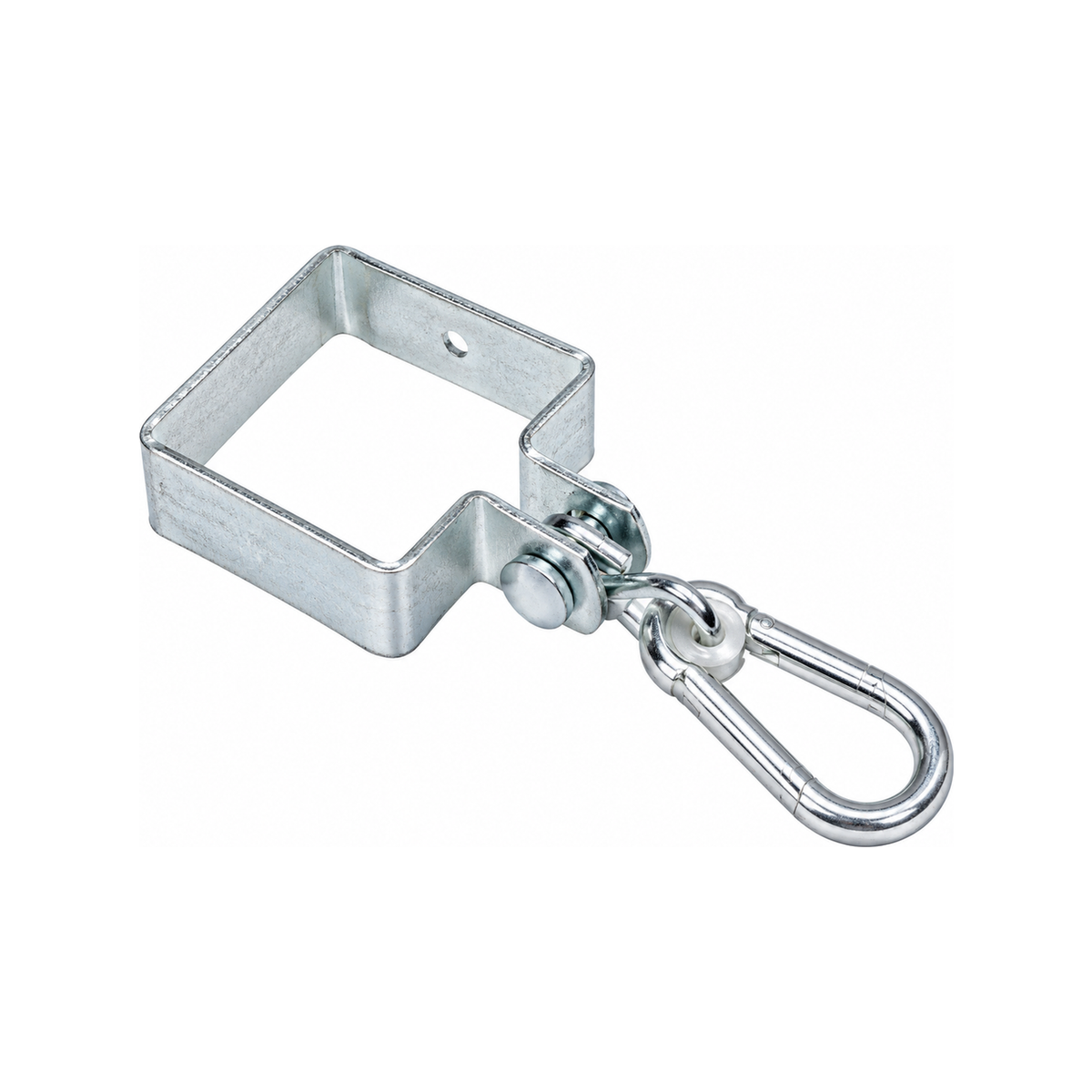

Collar Square Hook With Snap Hook

Collar Square Hook With Snap Hook

Model 04 / 06

Collar Square Hook With Snap Hook

MaterialSteel Q235B
SurfaceElectro-galvanized
Size rangeM10x90

Specification table

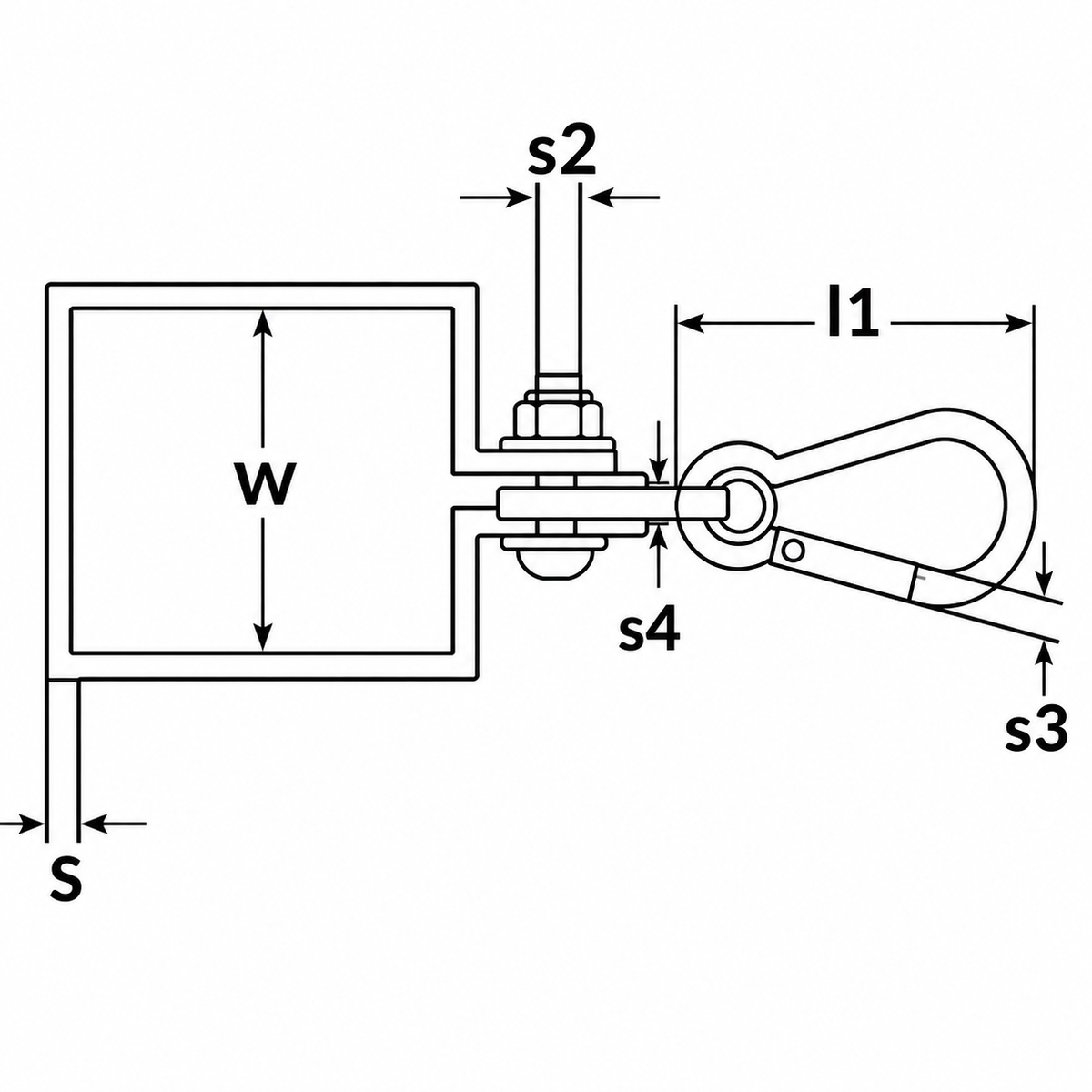

Collar Square Hook With Snap Hook — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	w	s2	l1	s3	s	s4	Weight
	mm		mm	mm	mm	mm	g/pc
M10x90	90	M10	100	0.9	2.5	7.5	535

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

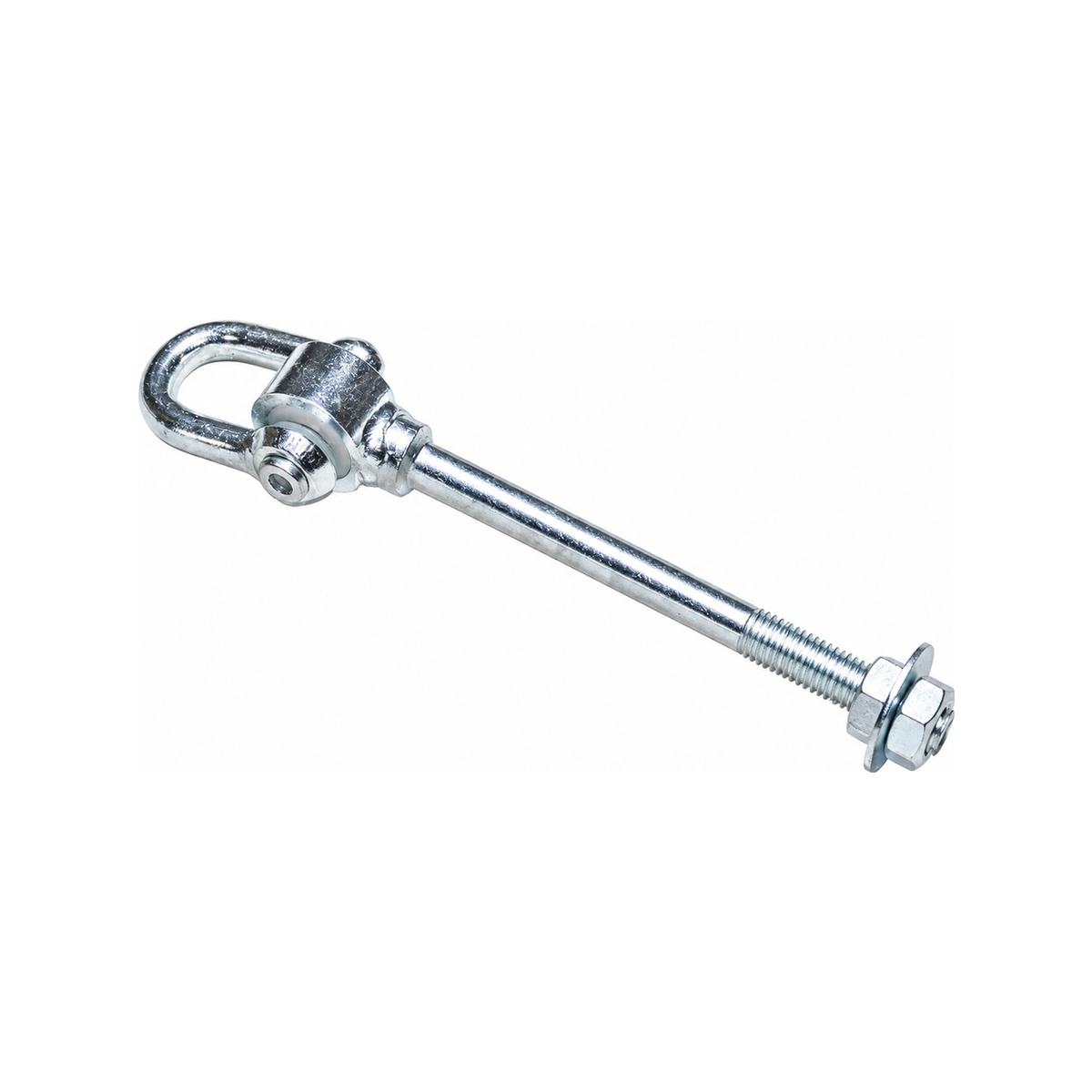

Swing Hanger With Shackle Type D

Swing Hanger With Shackle Type D

Model 05 / 06

Swing Hanger With Shackle Type D

MaterialSteel Q235B
SurfaceElectro-galvanized
Size rangeM12

Specification table

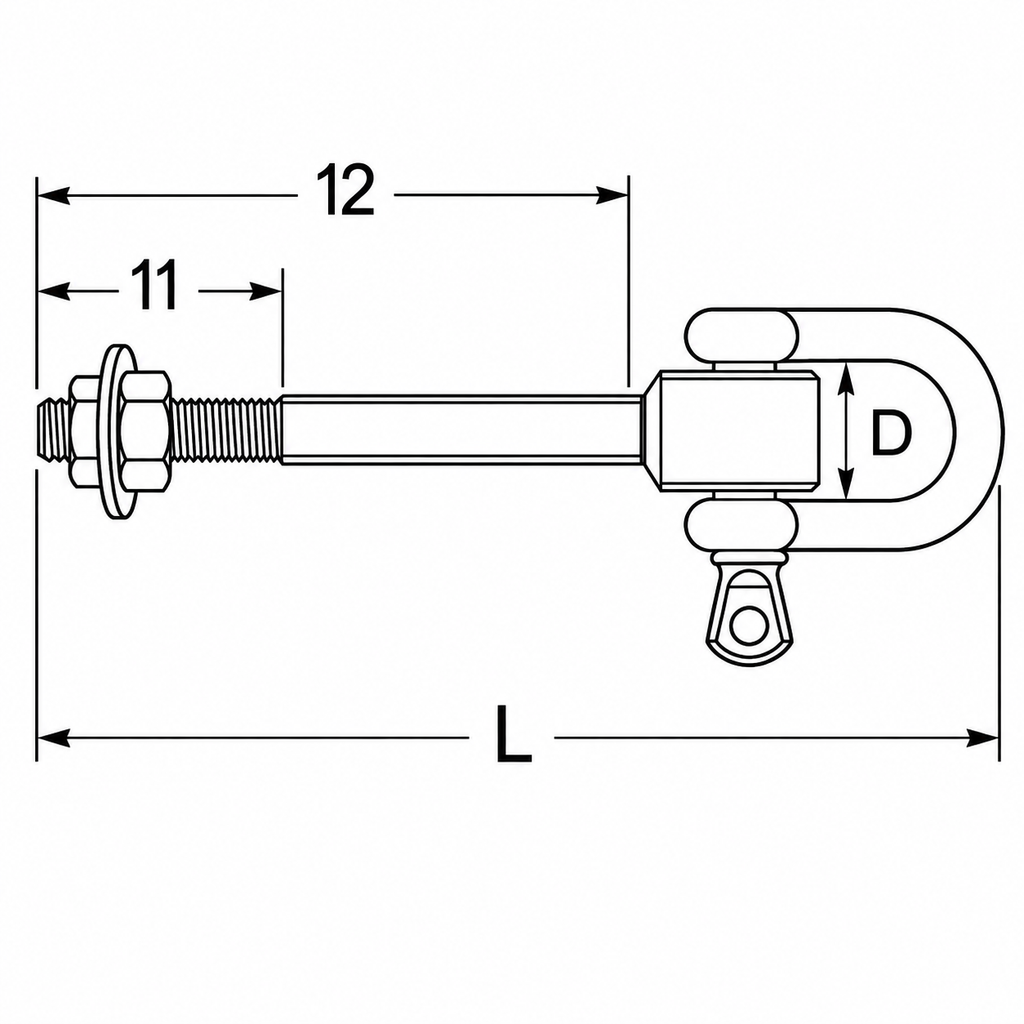

Swing Hanger With Shackle Type D — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	D	l1	l2	Fmax*	Weight
	mm	mm	mm	mm	kg	g/pc
M12	240	22	55	155	250	394

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

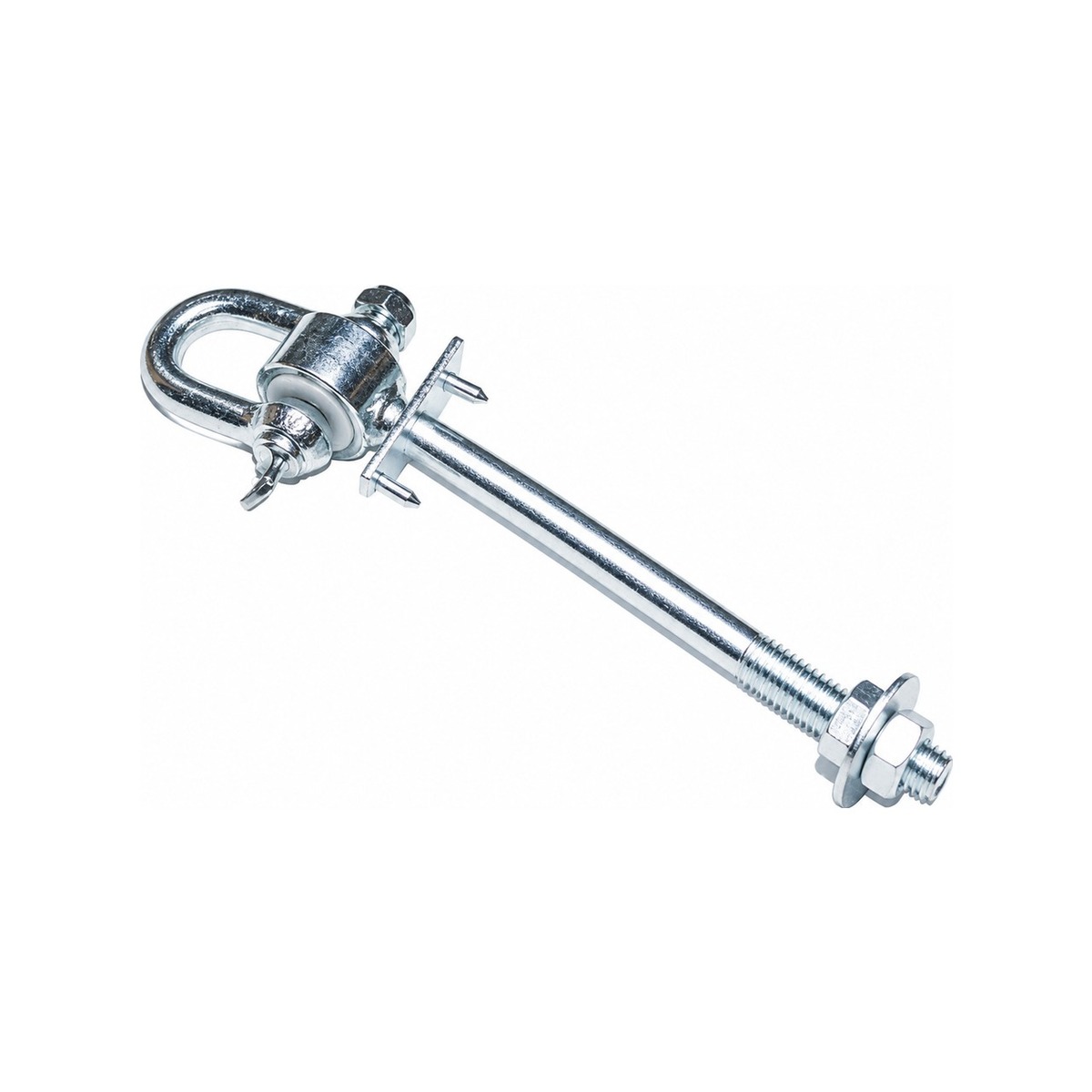

Swing Hanger With Shackle Type D+

Swing Hanger With Shackle Type D+

Model 06 / 06

Swing Hanger With Shackle Type D+

MaterialSteel Q235B
SurfaceElectro-galvanized
Size rangeM12

Specification table

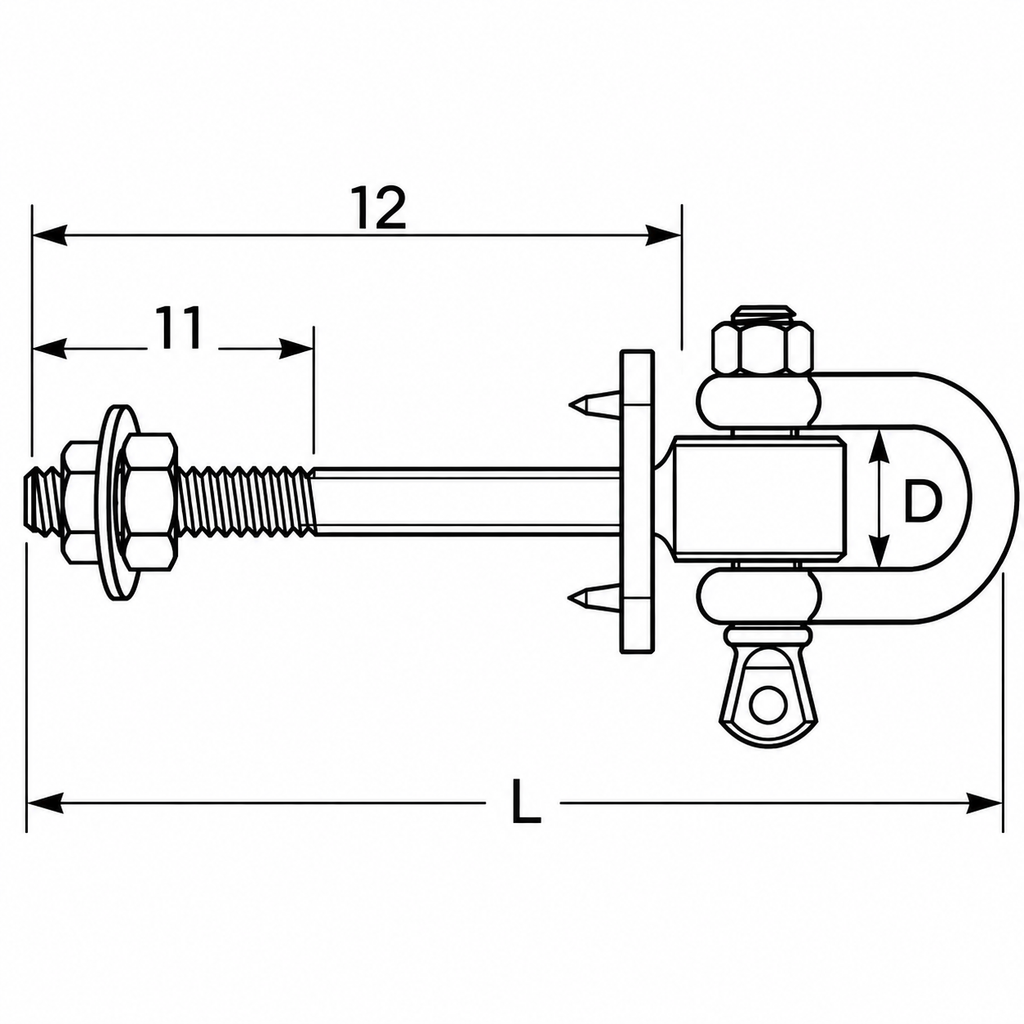

Swing Hanger With Shackle Type D+ — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	l2	D	L1	Fmax*	Weight
	mm	mm	mm	mm	kg	g/pc
M12	245	160	24	55	250	470

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Related pages

These pages cover the same job from a different angle.

WLL & safety factor

How to select

How to select

These fittings suspend a load, they do not lift it. State the suspended weight and the mounting tube size when you enquire.
Confirm the wire or bar diameter and the swing angle in service — a hanger used outside its intended swing range is fatigue loaded.
Dimensional drawings are issued per order against our works certificate. Tell us the tube diameter and the required length.

Applications

Playground swing framesSuspended seatingLight overhead fixturesTubular frame hangersDisplay and exhibition systemsLight garden and leisure equipment

Safety & use notes

Swing hooks and hangers are for suspending loads, not for lifting them. Do not use them on hoists or lifting appliances.
No rated load is stated for these types. Do not infer a working load from the wire size alone — request the drawing and the load figure in writing before use.
Check the snap hook or shackle closes fully and that the moving parts are not worn, before each installation.

Model types, related standards and manufacturing

Types & standards

Types & standards

Swing hook with snap hookA hanging hook closed by a snap hook, for swing frames and suspended seating.
Collar hanger with snap hookA collar-mounted hanger for tubular frames, with a snap hook end fitting.
Swing hanger with shackle type DA hanger finished with a D-shackle for permanent attachment to a frame or anchor point.

Manufacturing

How it is made

The hook and the swivel body are formed separately.
The swivel bearing surfaces are machined so the hook rotates without play under load.
The assembly is put together with the retaining element, then checked for smooth rotation.
Surface treatment is applied and rotation is re-checked.

What to check on receipt

The hook rotates smoothly under load without binding or excessive play.
The retaining element is secure and the assembly cannot separate.
No cracks or distortion at the swivel or at the hook throat.

FAQ

FAQ

Are these hooks suitable for lifting?
