Are S-hooks and spring hooks for lifting?

No — they are for light hanging and connecting, not overhead lifting.

Why stainless meat hooks?

Stainless resists corrosion and meets the hygiene needs of food handling and cold chain.

What is the wire tensioner for?

It tightens and holds tension in fence wire and cable runs; green coating is for outdoor visibility.

Others | S-Hook, Meat Hook, Wire Tensioner

Name: Others
Brand: Newbas

Model 01 / 06

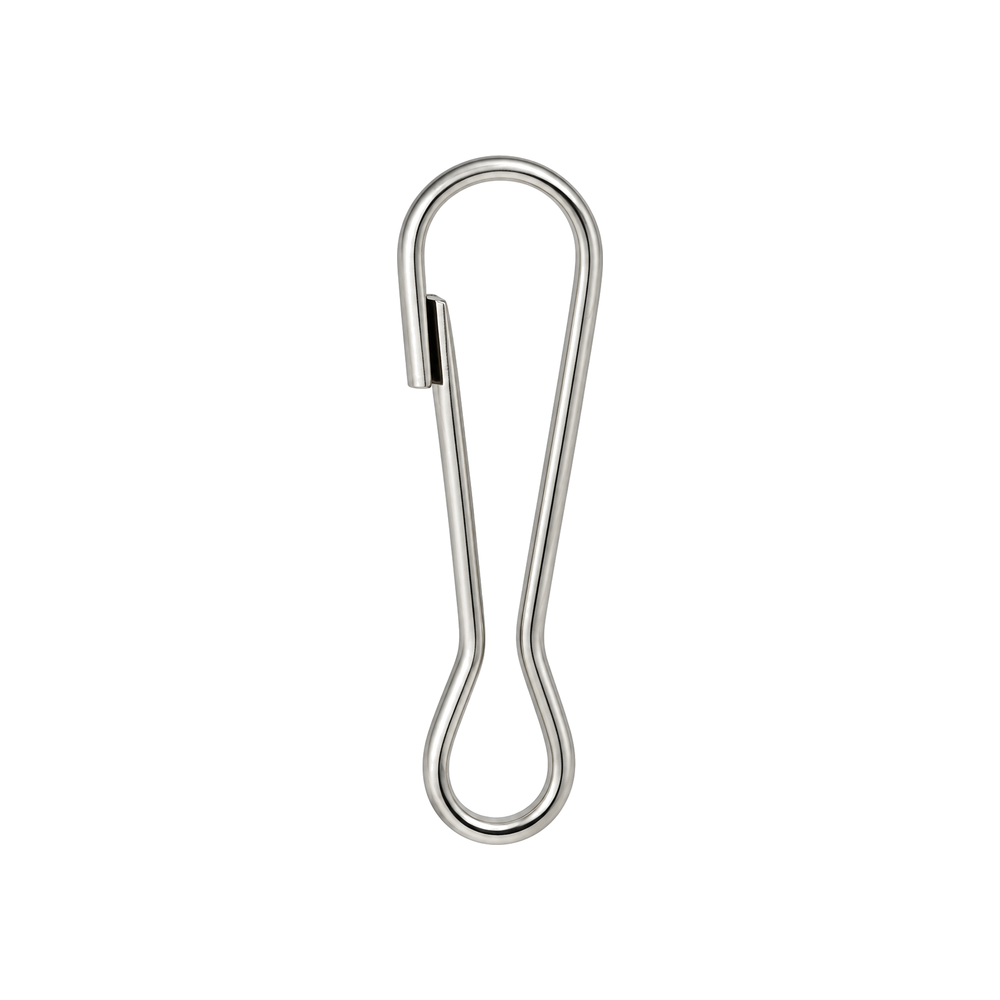

Spring Hook DIN 5287 A

MaterialZinc alloy
SurfaceNickel-plated
Size range30mm – 60mm

Specification table

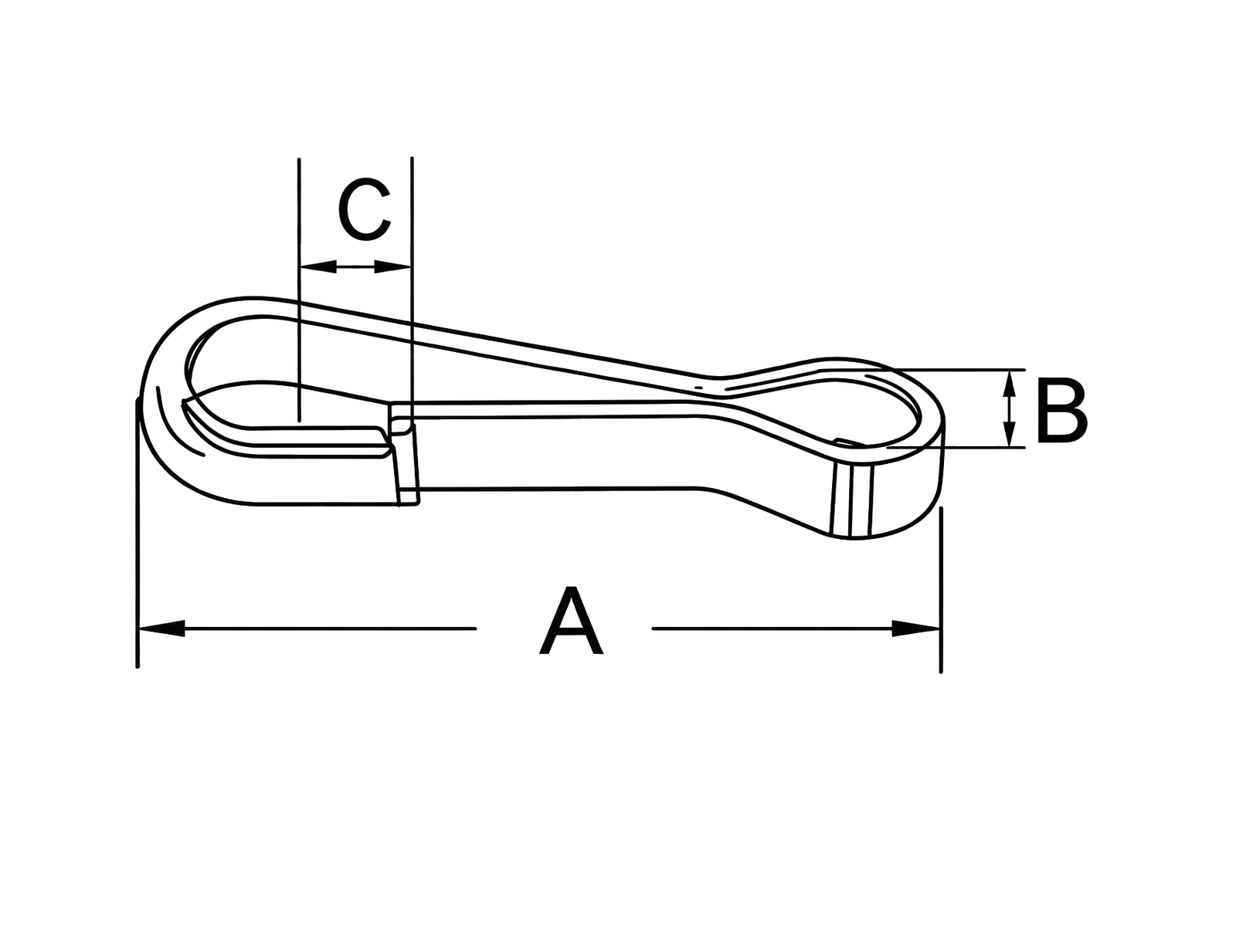

Spring Hook DIN 5287 A — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	A	B	C	Weight
mm	mm	mm	mm	g/pc
30mm	30	5.5	5	1.8
40mm	40	7	6	3.7
50mm	50	8	7	6.4
60mm	60	10	9	9.5

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 02 / 06

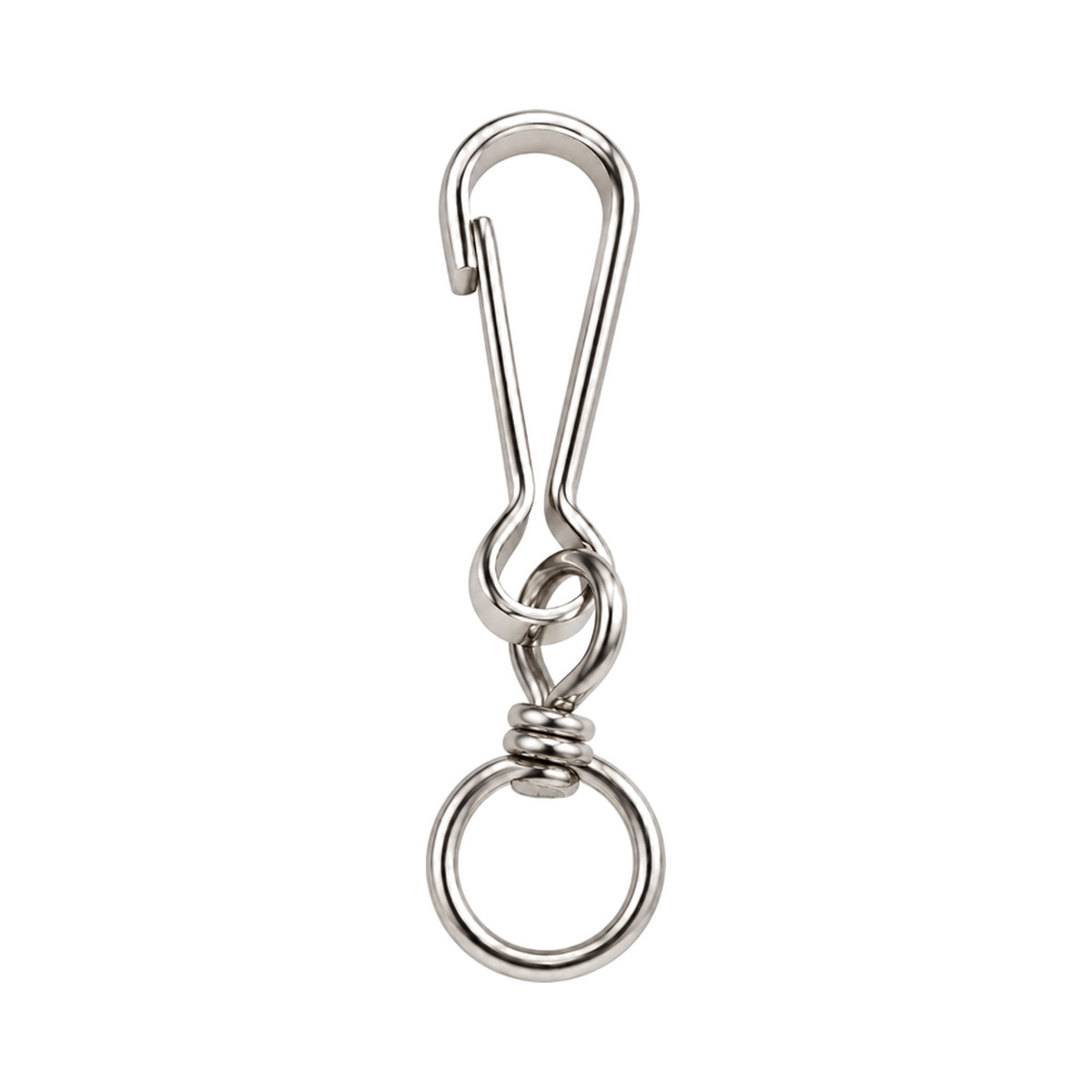

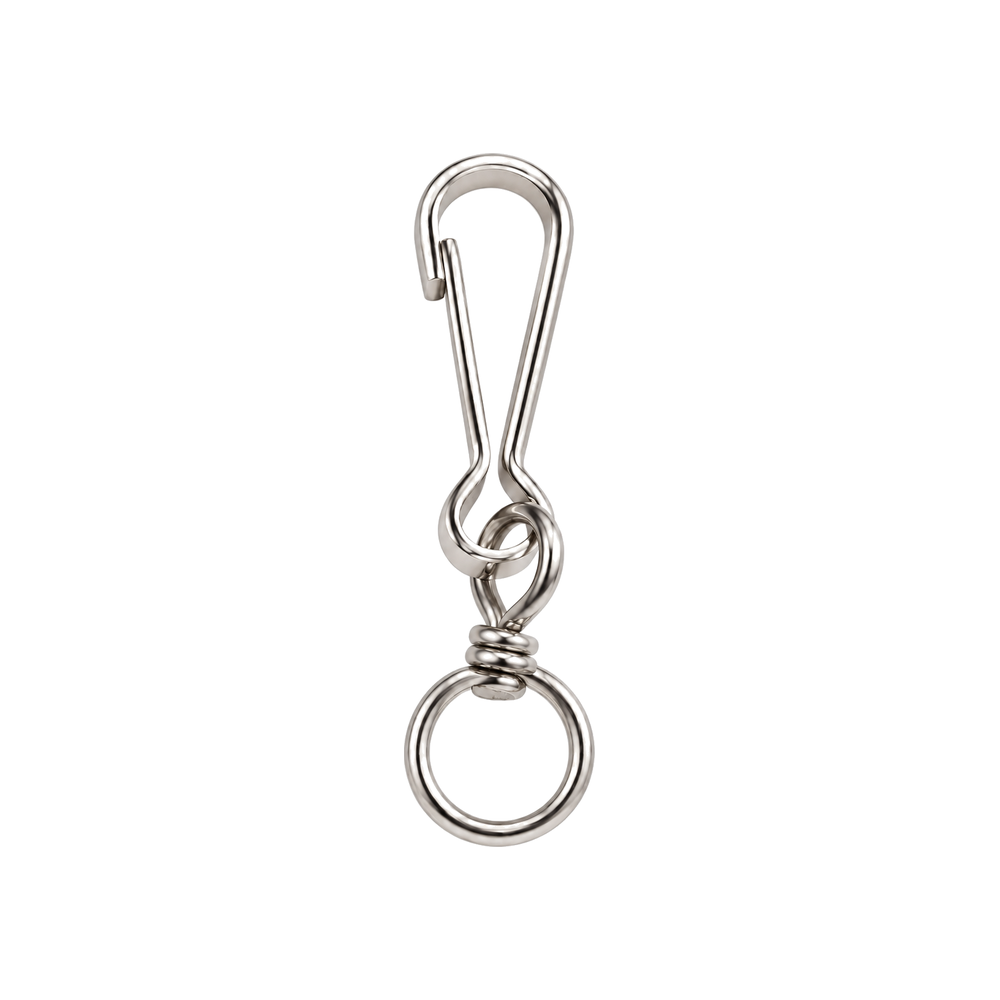

Spring Hook With Ring DIN 5287

MaterialZinc alloy
SurfaceNickel-plated
Size range30mm – 60mm

Specification table

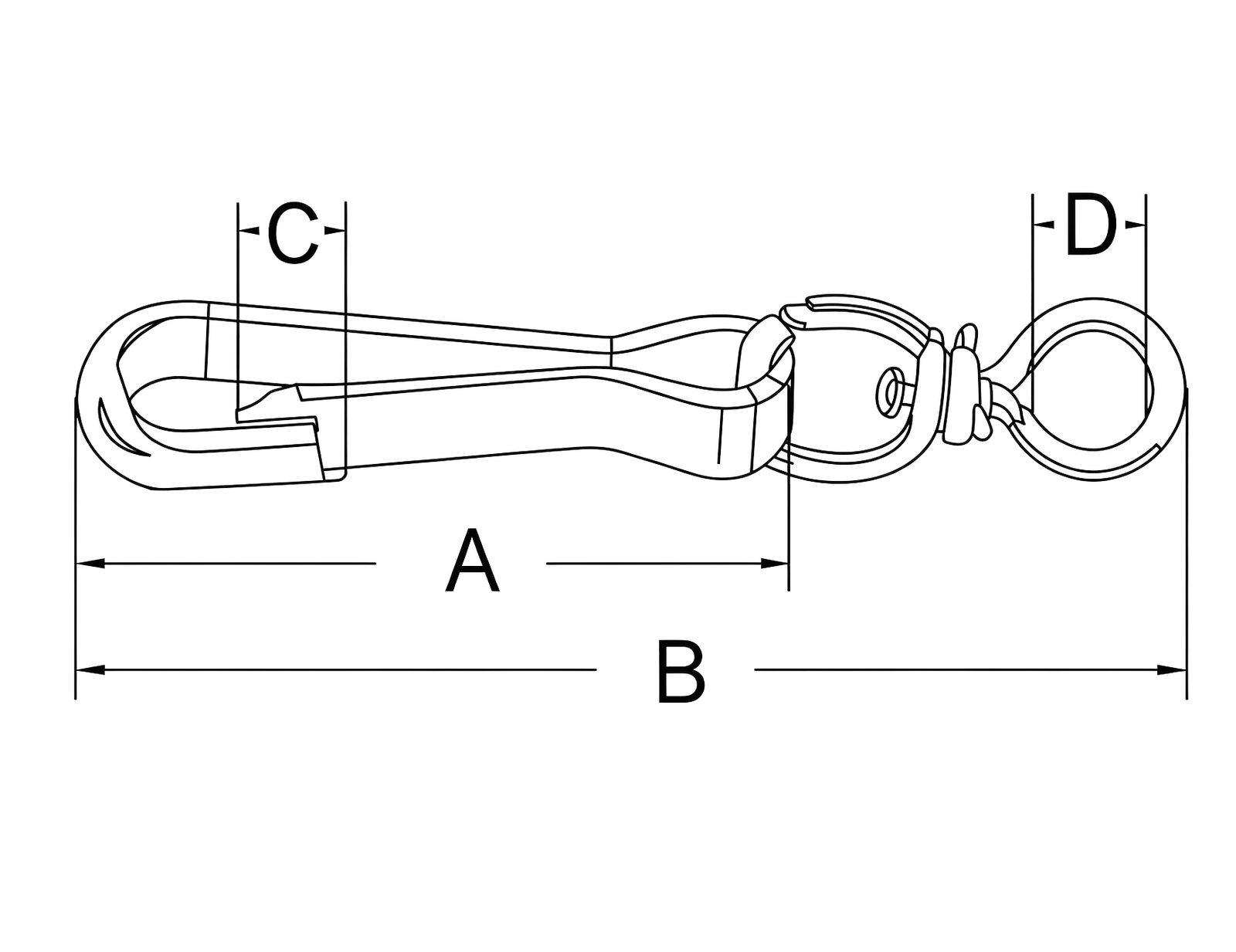

Spring Hook With Ring DIN 5287 — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	A	B	C	D	WLL	Weight
mm	mm	mm	mm	mm	kg	g/pc
30mm	30	60	4	11	5	4.5
40mm	40	65	6	11	10	5.9
50mm	50	90	7	15	20	12
60mm	60	95	8	15	30	13.6

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 03 / 06

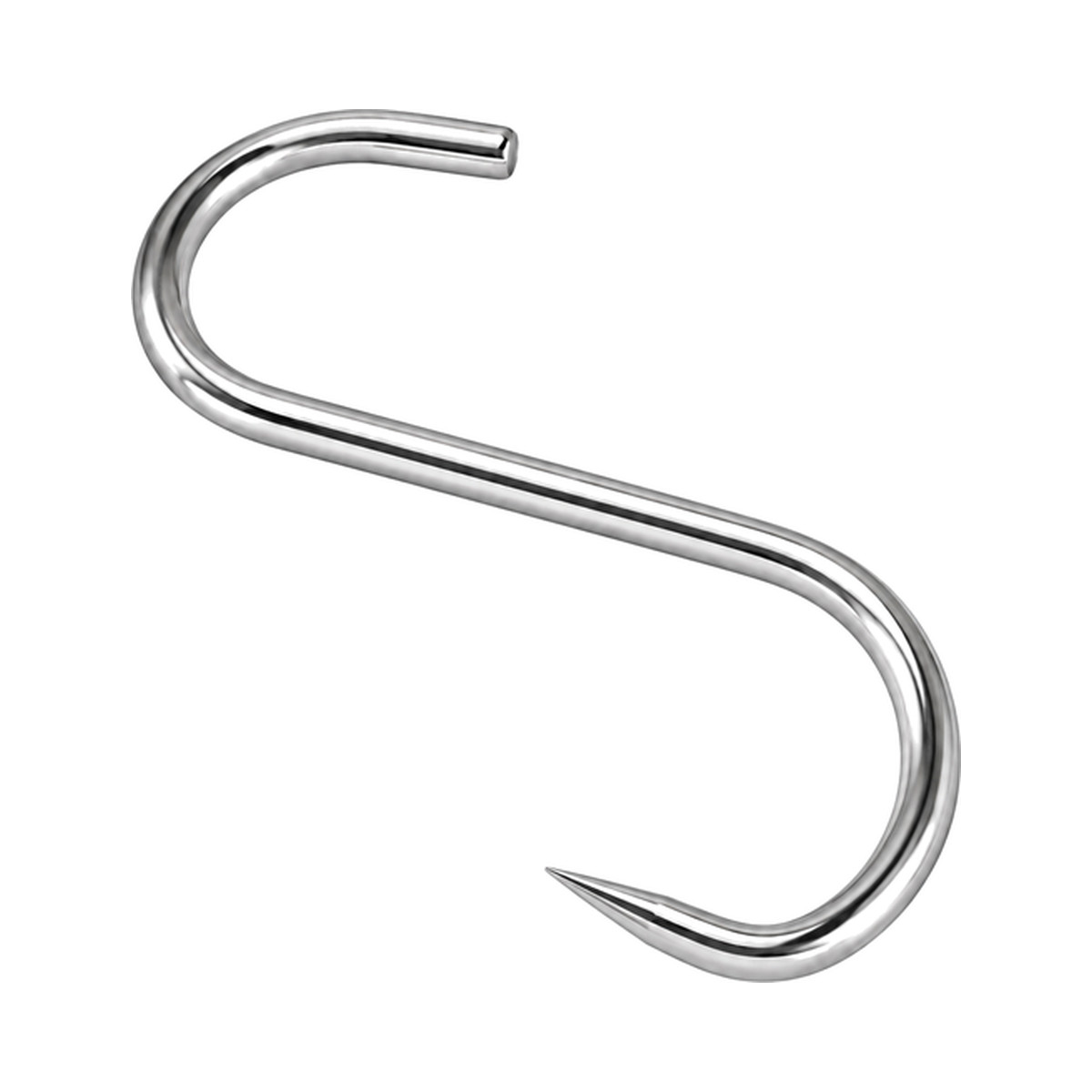

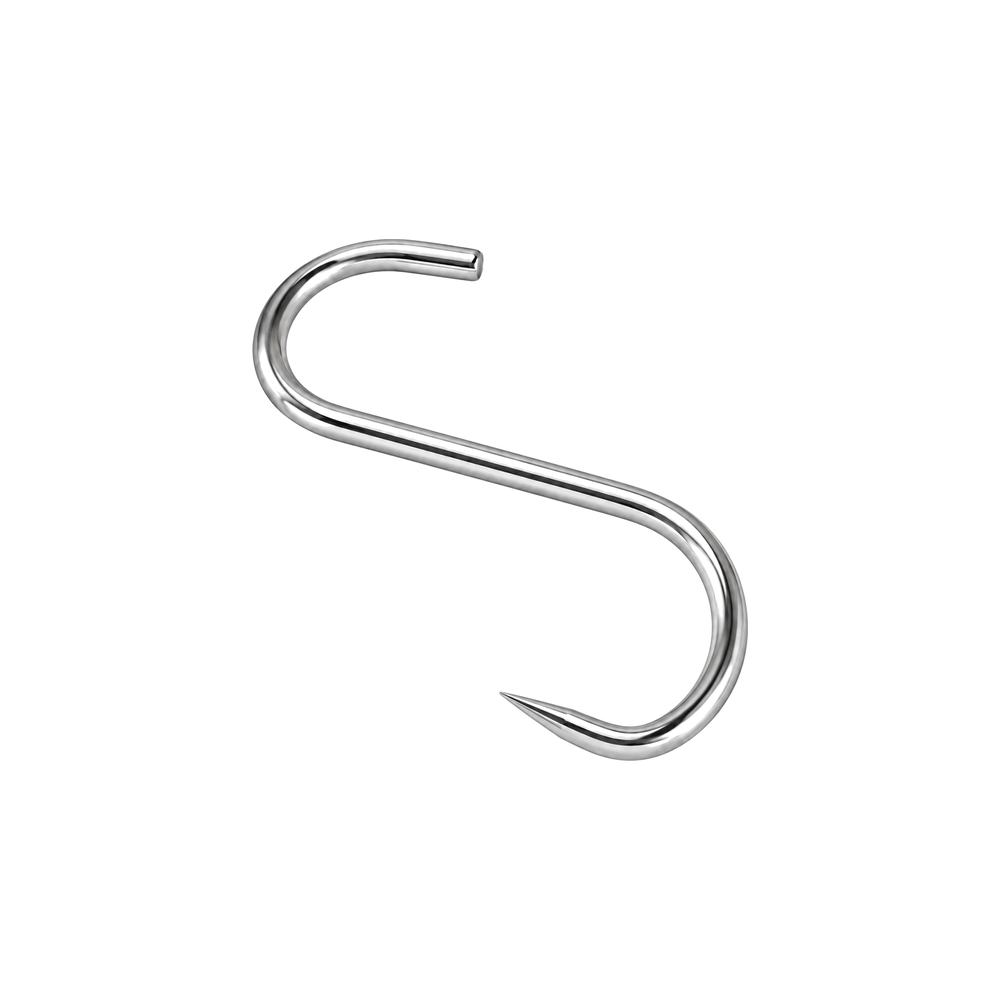

Meat Hook

MaterialStainless Steel ANSI304
SurfaceN/M
Size range80x4mm – 180x5.8mm

Specification table

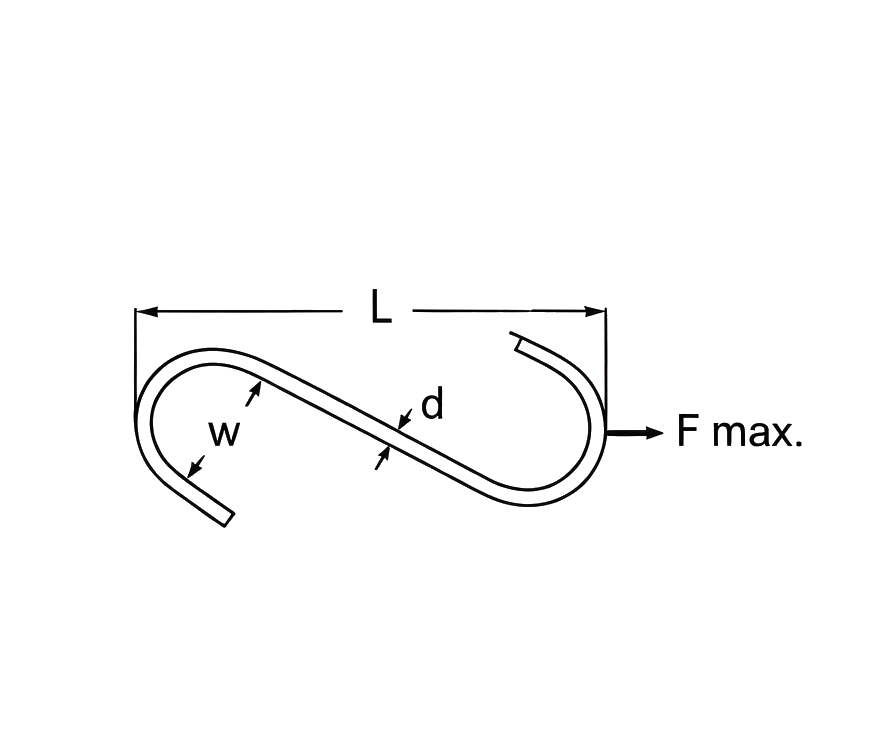

Meat Hook — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	d	w	F max*	Weight
mm	mm	mm	mm	kg/pc	g/pc
80x4mm	80	4	22	15	16
100x4.5mm	100	4.5	26	20	21
120x4.8mm	120	4.8	30	25	30
140x5.2mm	140	5.2	37	30	40
160x5.8mm	160	5.8	38	40	58
180x5.8mm	180	5.8	50	40	68

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 04 / 06

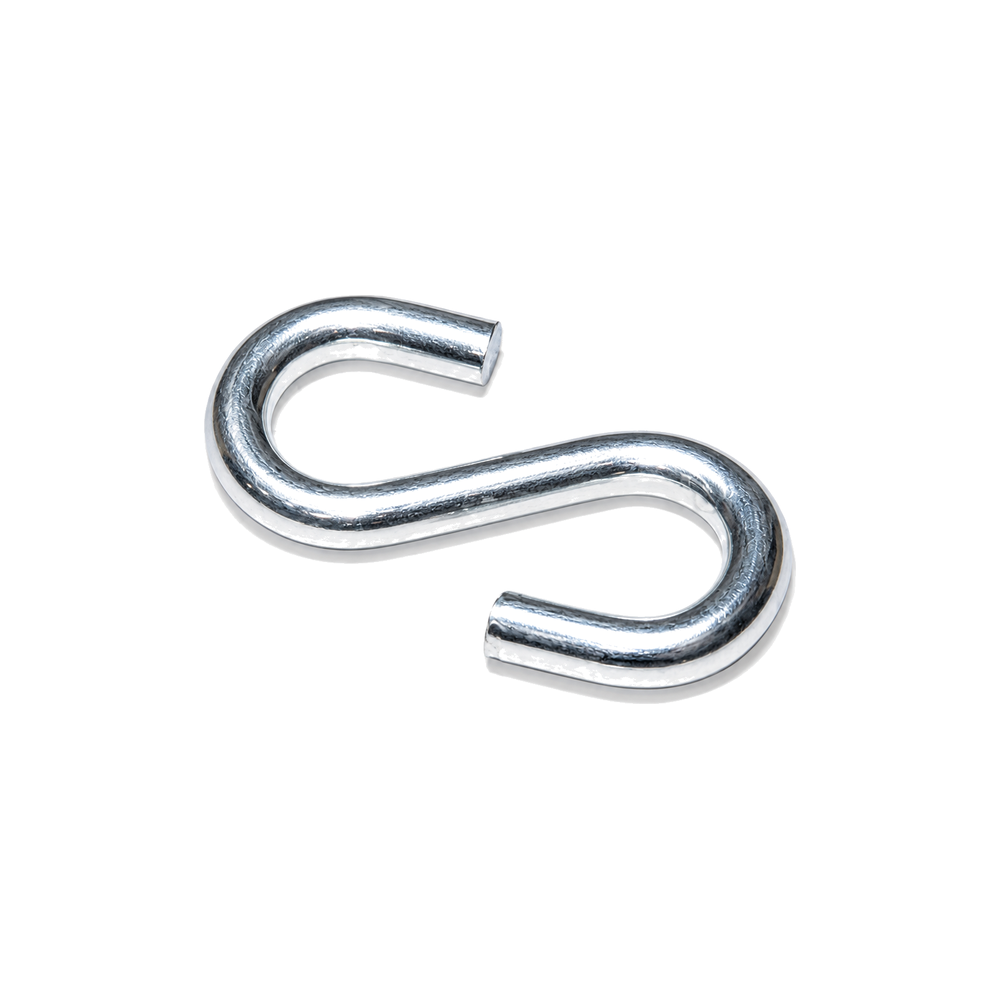

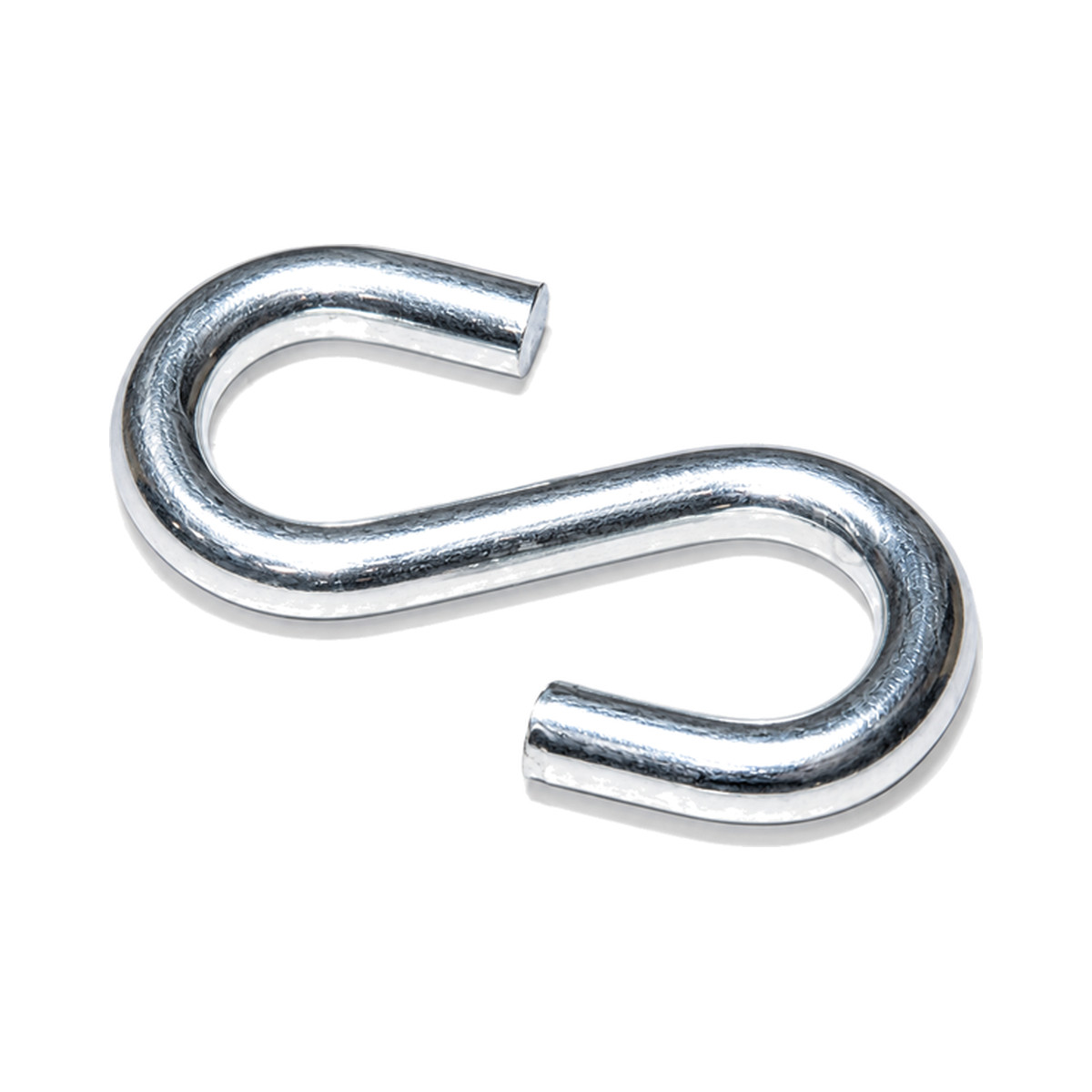

S-hook

MaterialSteel Q235B
SurfaceElectro-galvanized
Size range2.5mm – 10mm

Specification table

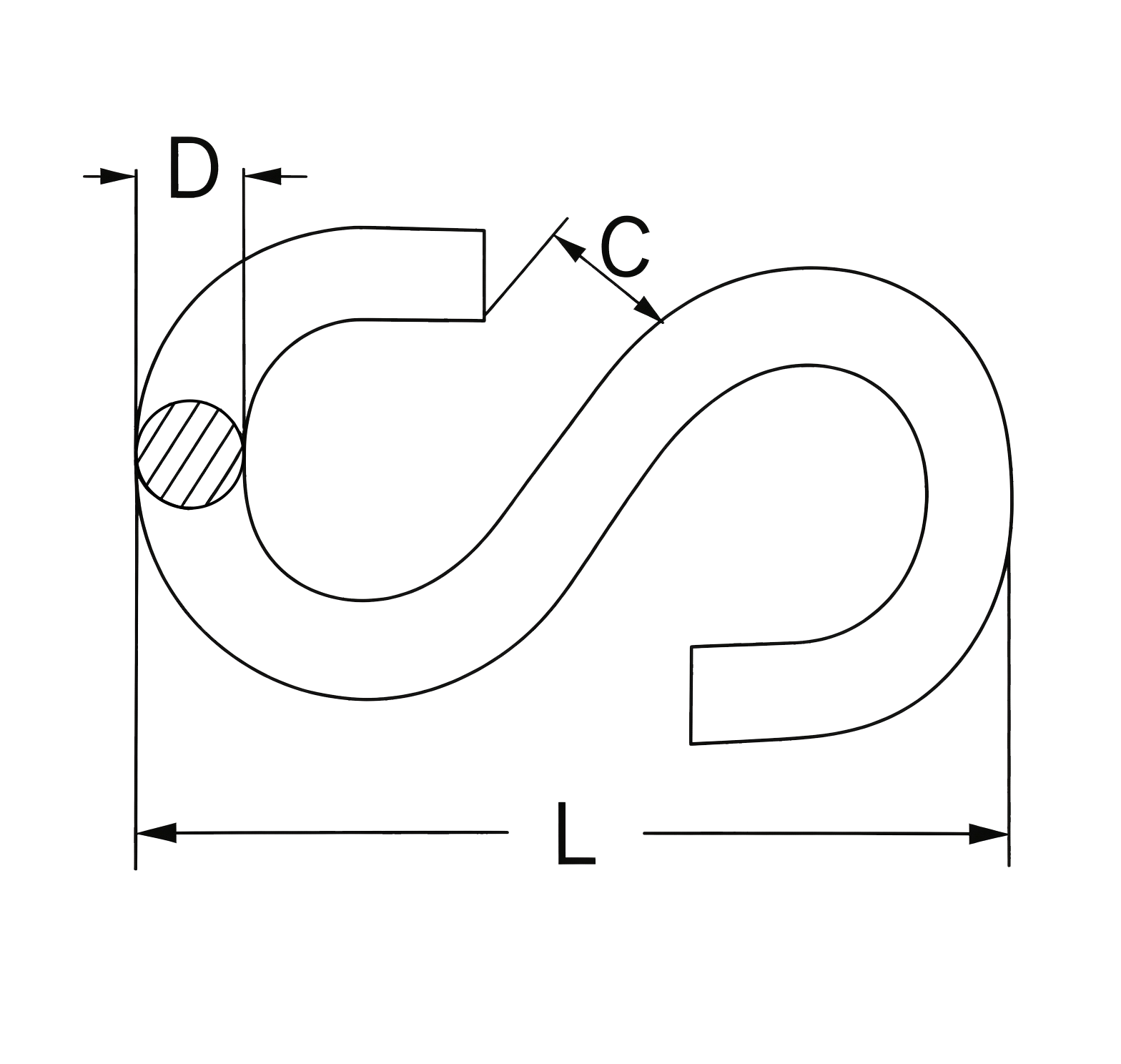

S-hook — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	D	C	WLL	Weight
mm	mm	mm	mm	kg*	g/pc
2.5mm	26	2.5	5	4	2.3
3mm	26	3	5	8	3.3
3.5mm	36	3.5	6	11	5.7
4mm	36	4	7	15	7
5mm	45	5	9	25	13
6mm	55	6	9	40	24
7mm	65	7	10	60	39
8mm	75	8	13	90	58
10mm	85	10	18	200	103

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 05 / 06

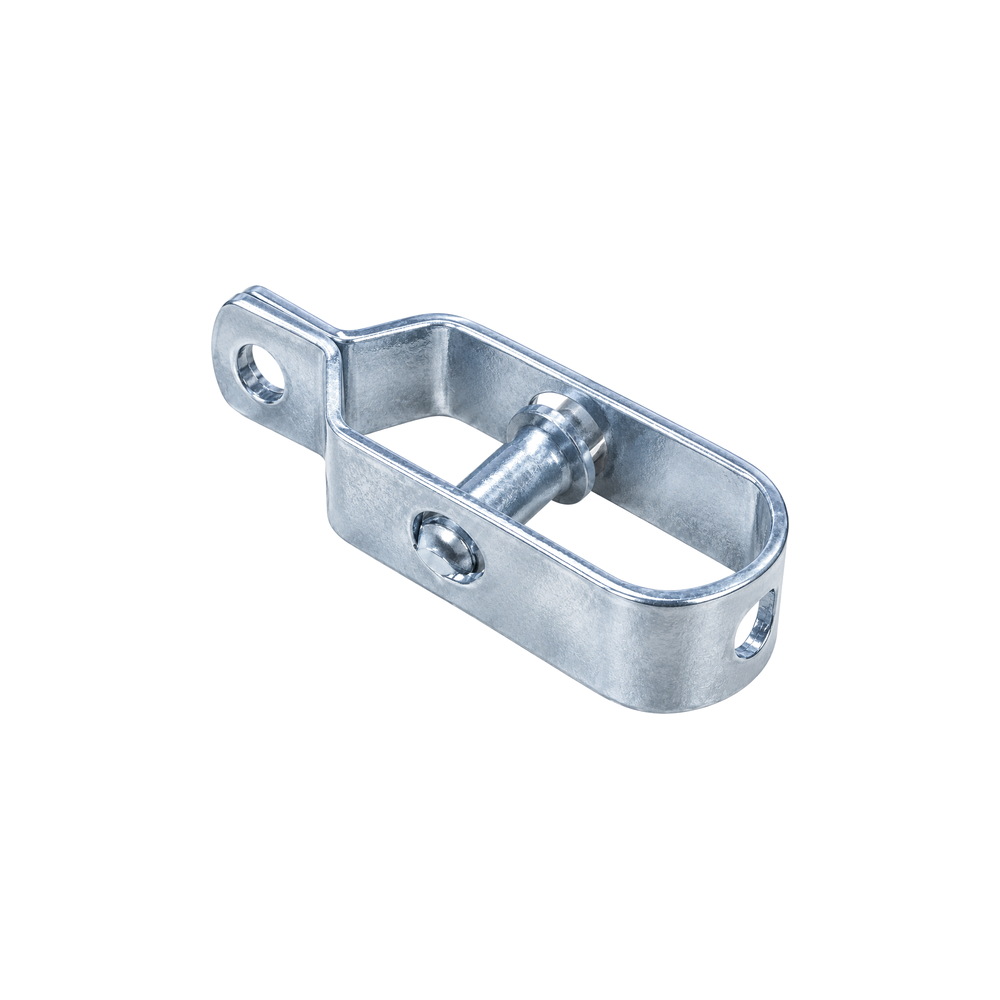

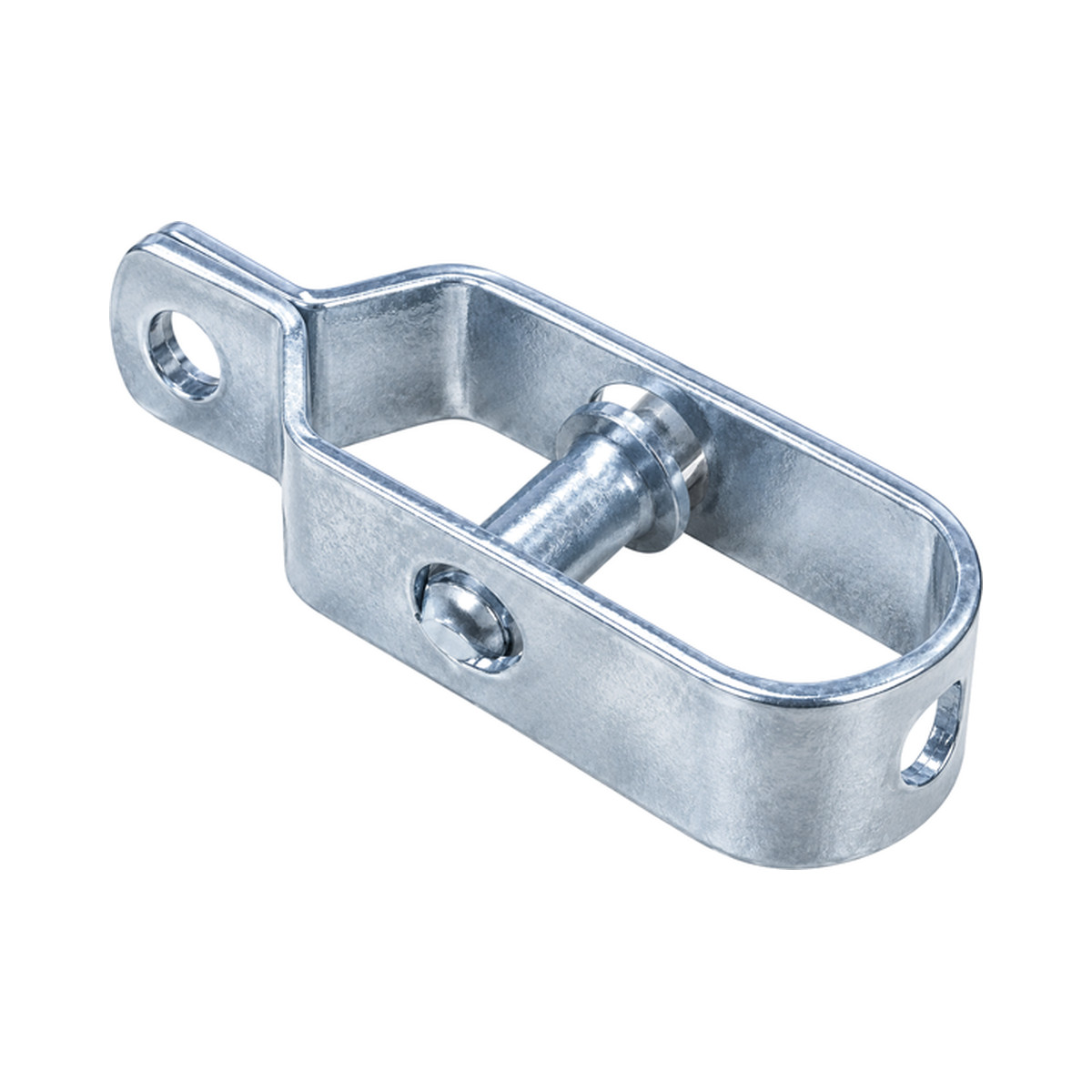

Wire Tensioner Zinc Plated

MaterialSteel Q235B
SurfaceElectro-galvanized
Size range100mm – 120mm

Specification table

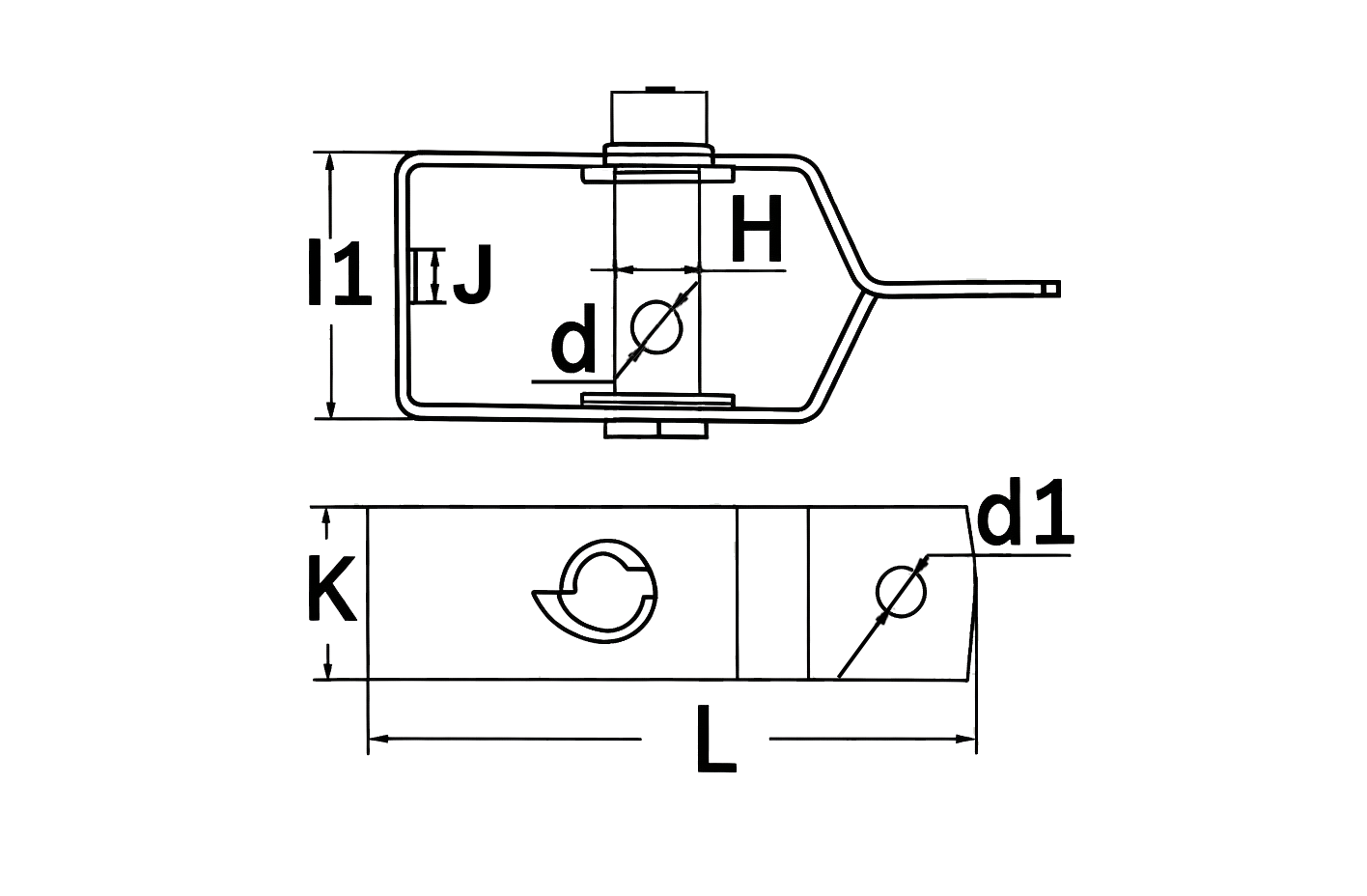

Wire Tensioner Zinc Plated — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	l1	d	d1	H	J	K	Weight
mm	mm	mm	mm	mm	mm	mm	mm	kg/pc
100mm	90	30	5	8.5	10	7	20	0.08
120mm	105	30	5	8.5	10	7	22	0.098

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.

Model 06 / 06

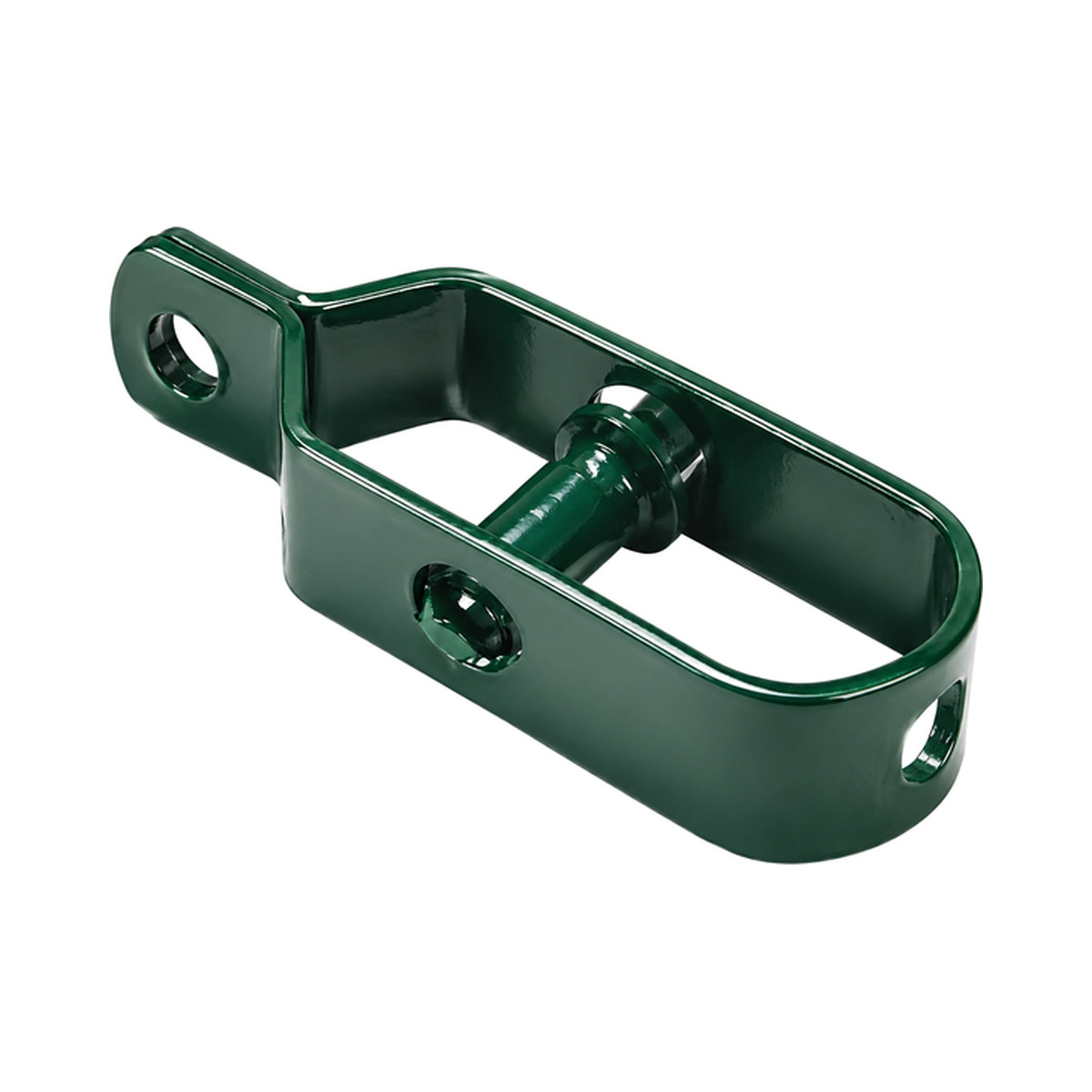

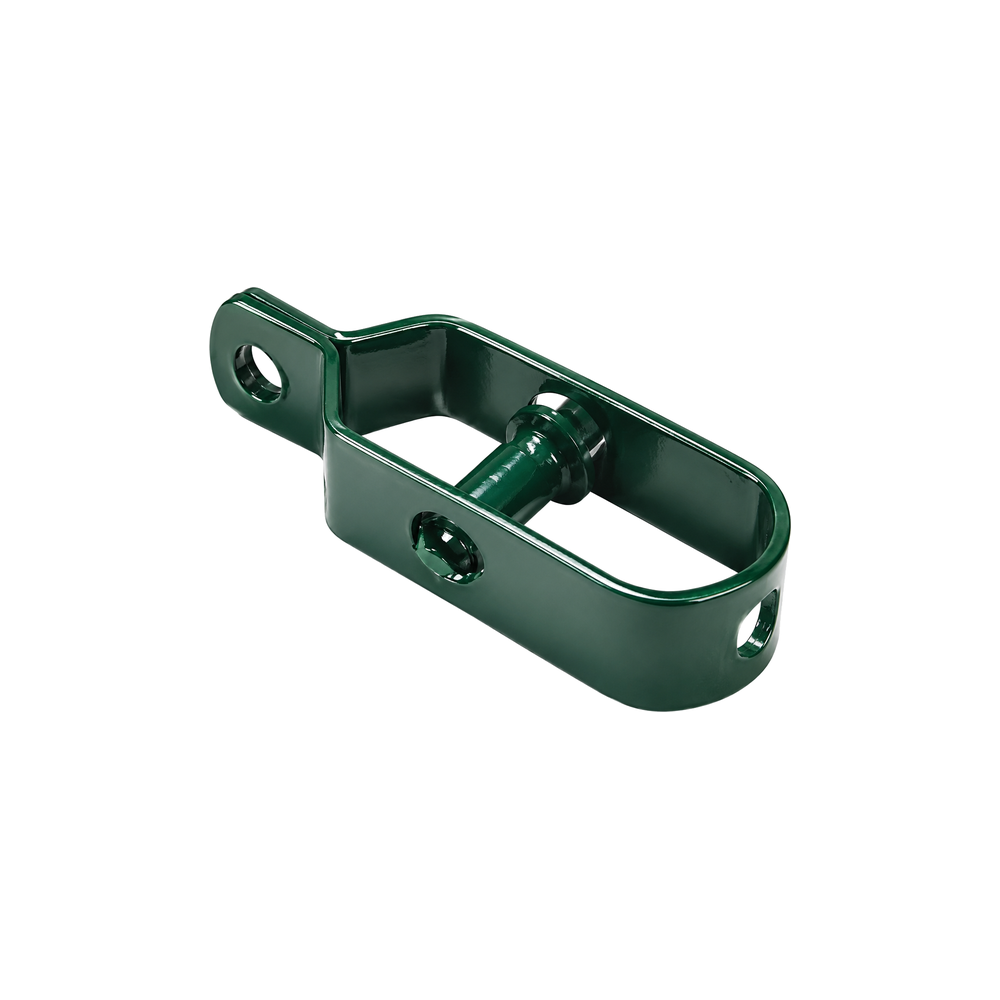

Wire Tensioner Green Coated

MaterialSteel Q235B
SurfaceGreen painted
Size range100mm – 120mm

Specification table

Wire Tensioner Green Coated — dimensional drawing — Dimensional drawing — shows the dimension symbols used in the table.

Size	L	l1	d	d1	H	J	K	Weight
mm	mm	mm	mm	mm	mm	mm	mm	kg/pc
100mm	90	30	5	8.5	10	7	20	0.08
120mm	105	30	5	8.5	10	7	22	0.098

Catalogue values. Dimensions in mm unless the size column shows an inch value. Confirm the exact size, material and rating before ordering.
