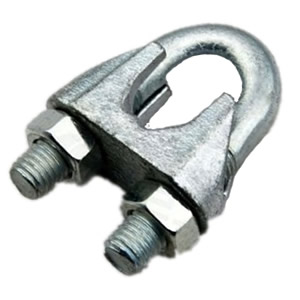

A wire rope clamp, also called a clip, is used to fix the loose end of the loop back to the wire rope. It usually consists of a u-shaped bolt, a forged saddle and two nuts. The two layers of wire rope are placed in the u-bolt. The saddle is then fitted over the ropes on to the bolt (the saddle includes two holes to fit to the u-bolt). The nuts secure the arrangement in place. Three or more clamps are usually used to terminate a wire rope. As many as eight may be needed for a 2 in diameter rope. There is an old adage which has over time become the rule; when installing the three clamps to secure the loop at the end of your wire rope make sure you do not "Saddle a Dead Horse!" The saddle portion of the clamp assembly is placed and tightened on the opposite side of the terminal end of the cable. The US Navy and most regulatory bodies do not recommend the use of such clips as permanent terminations.
